Winkel-Kegelradgetriebe, Untersetzungsgetriebe,Kommutator für NEMA 34 Schrittmotoren / 80 mm Servomotoren

Right Angle Bevel Gearbox Gear Speed Reducer Commutator for NEMA 34 Stepper/ 80mmServo Motor


Models:

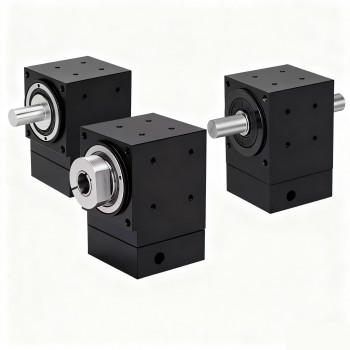

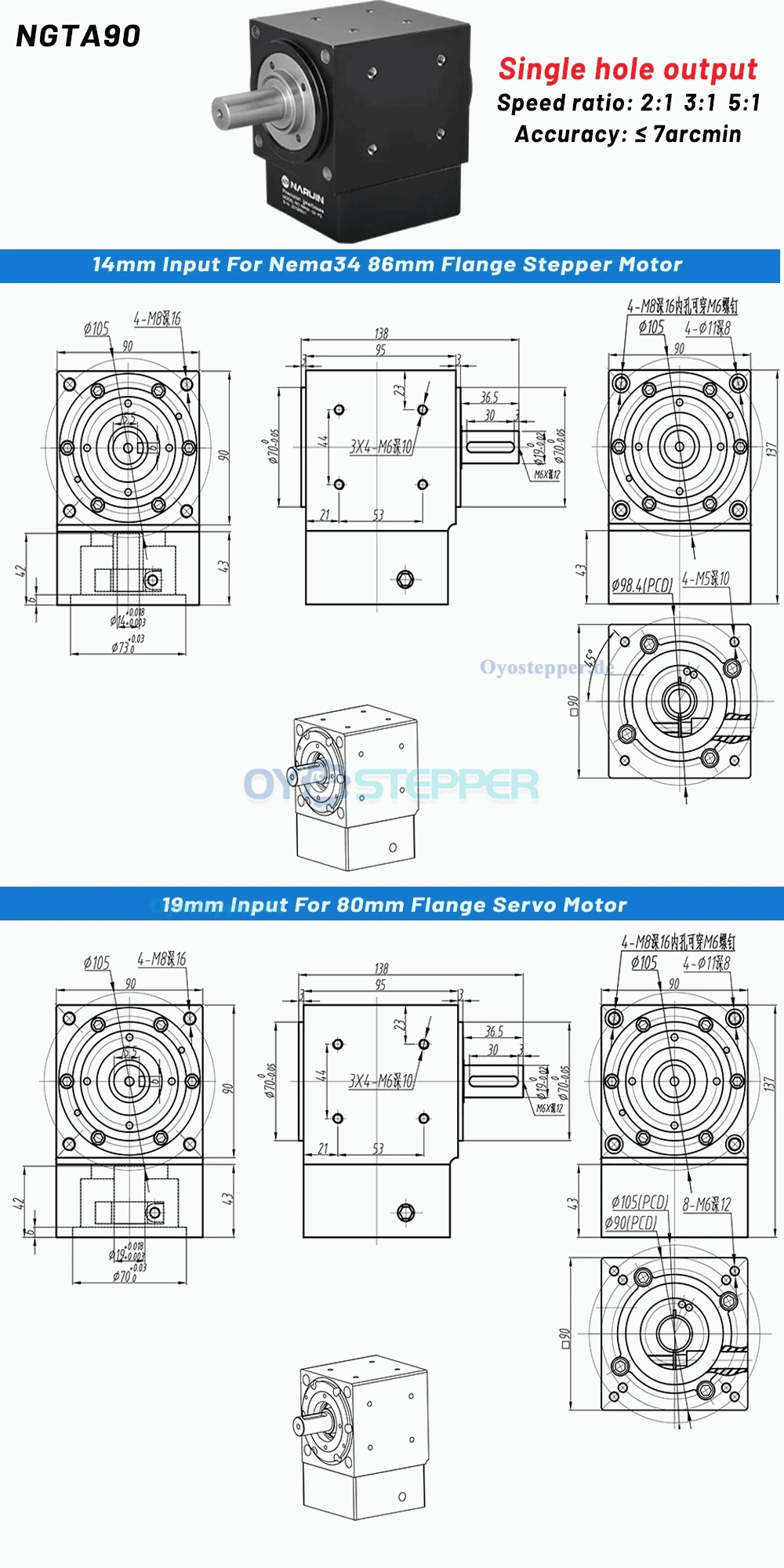

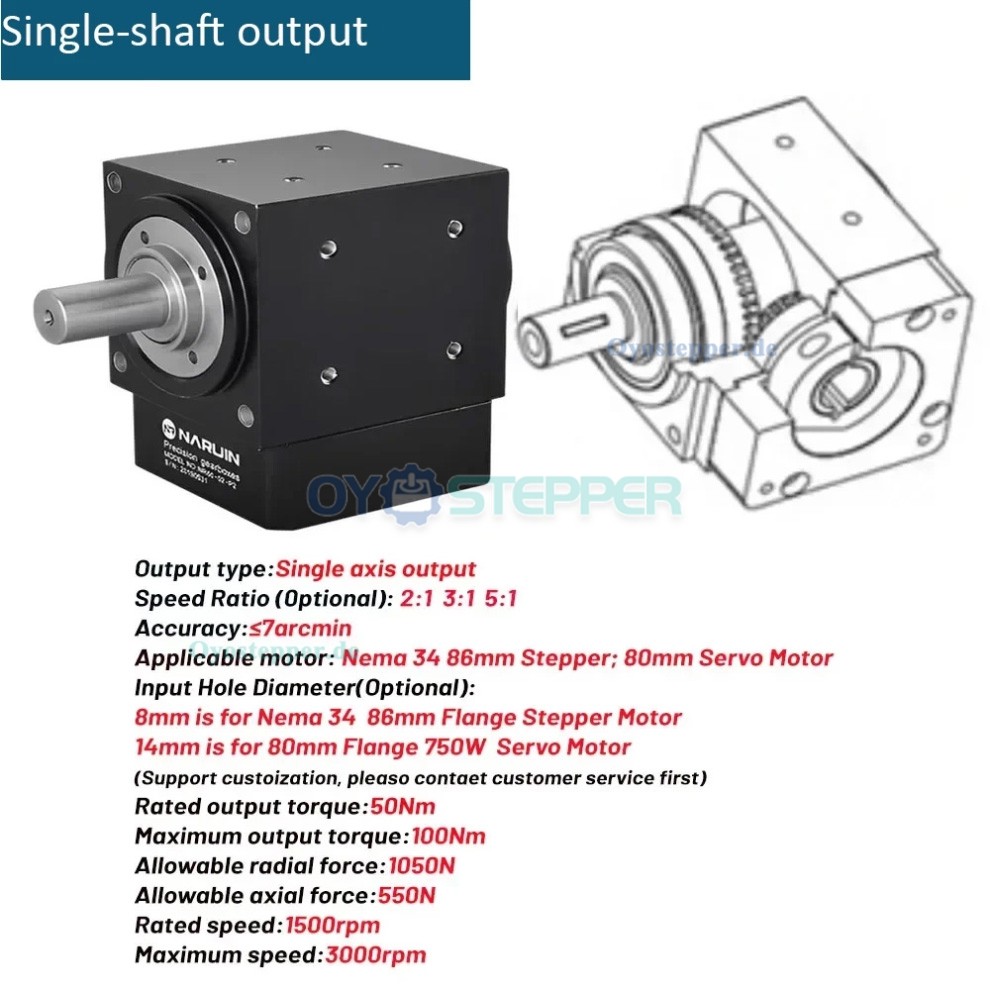

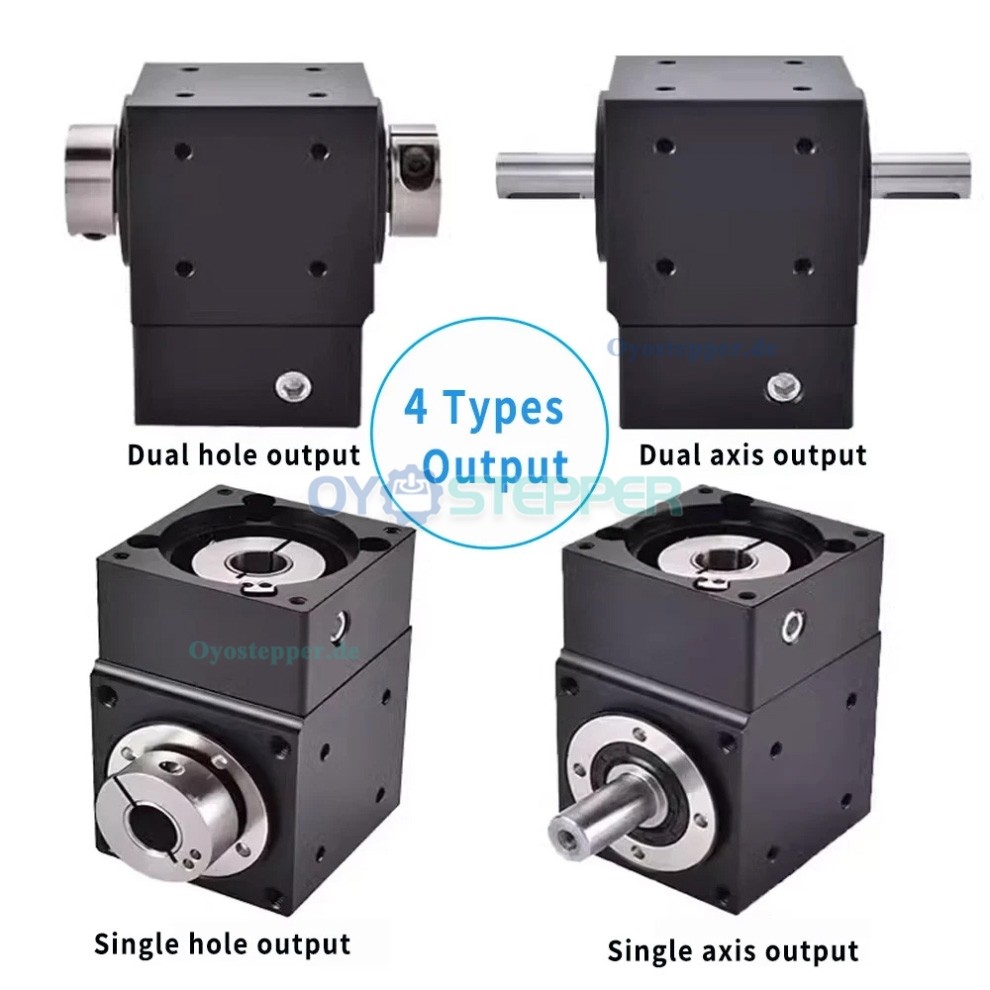

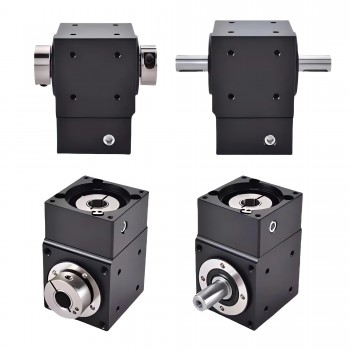

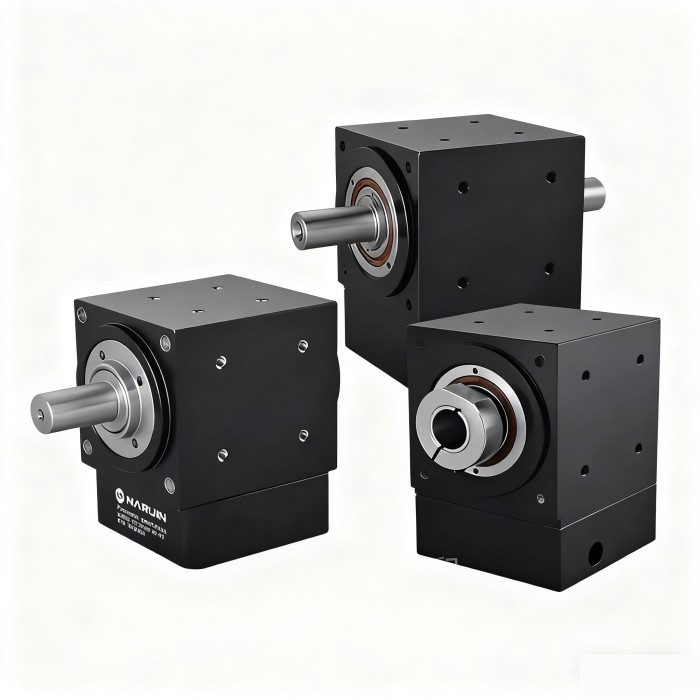

Single Shaft Output

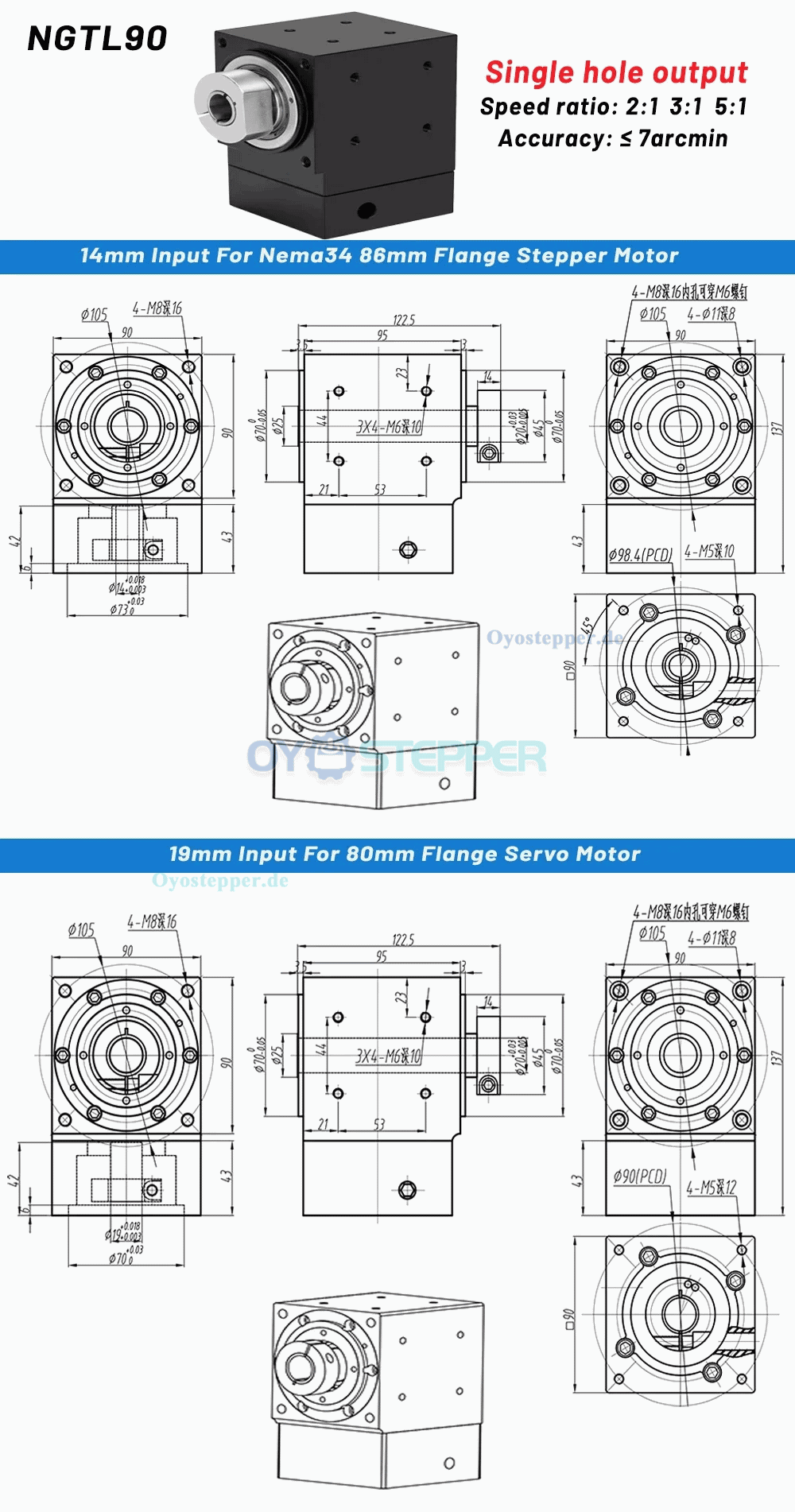

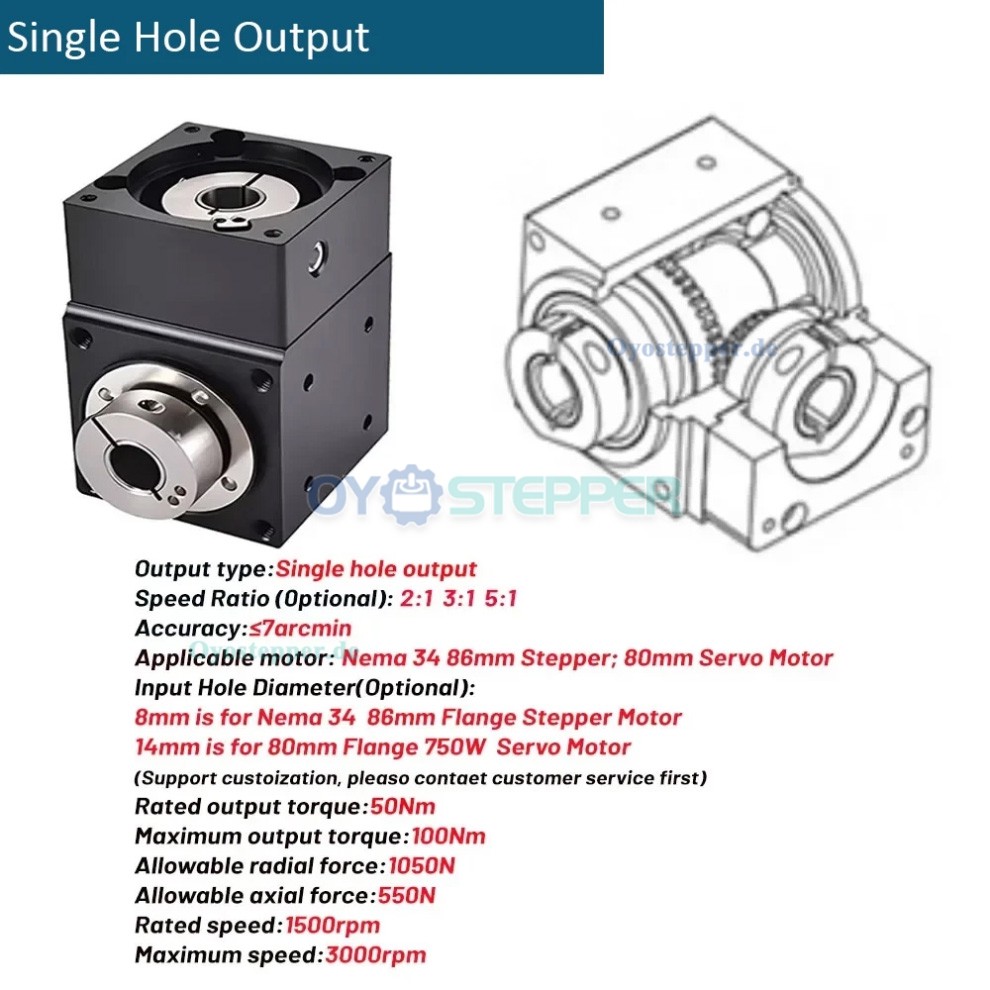

Single Hole Output

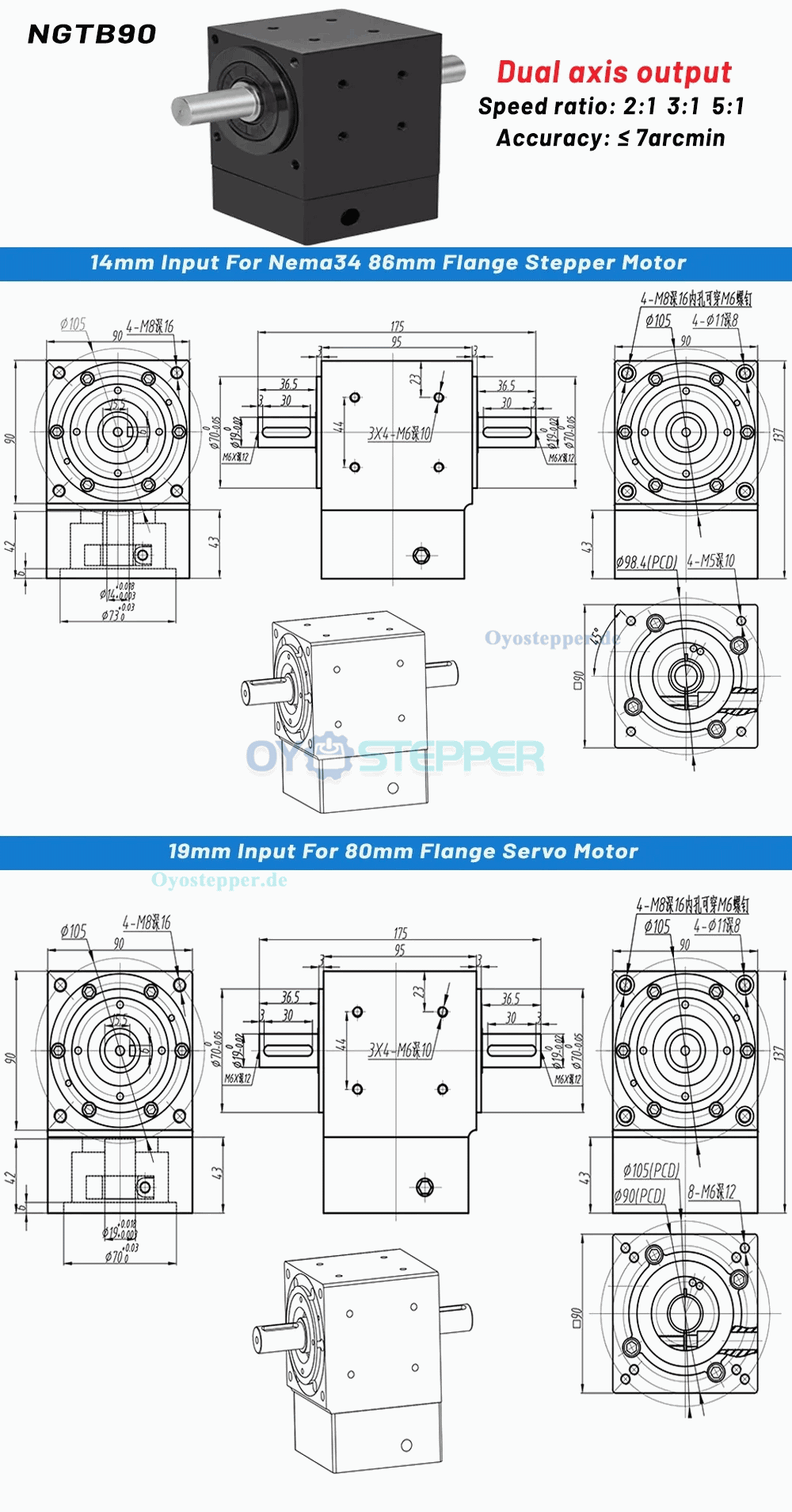

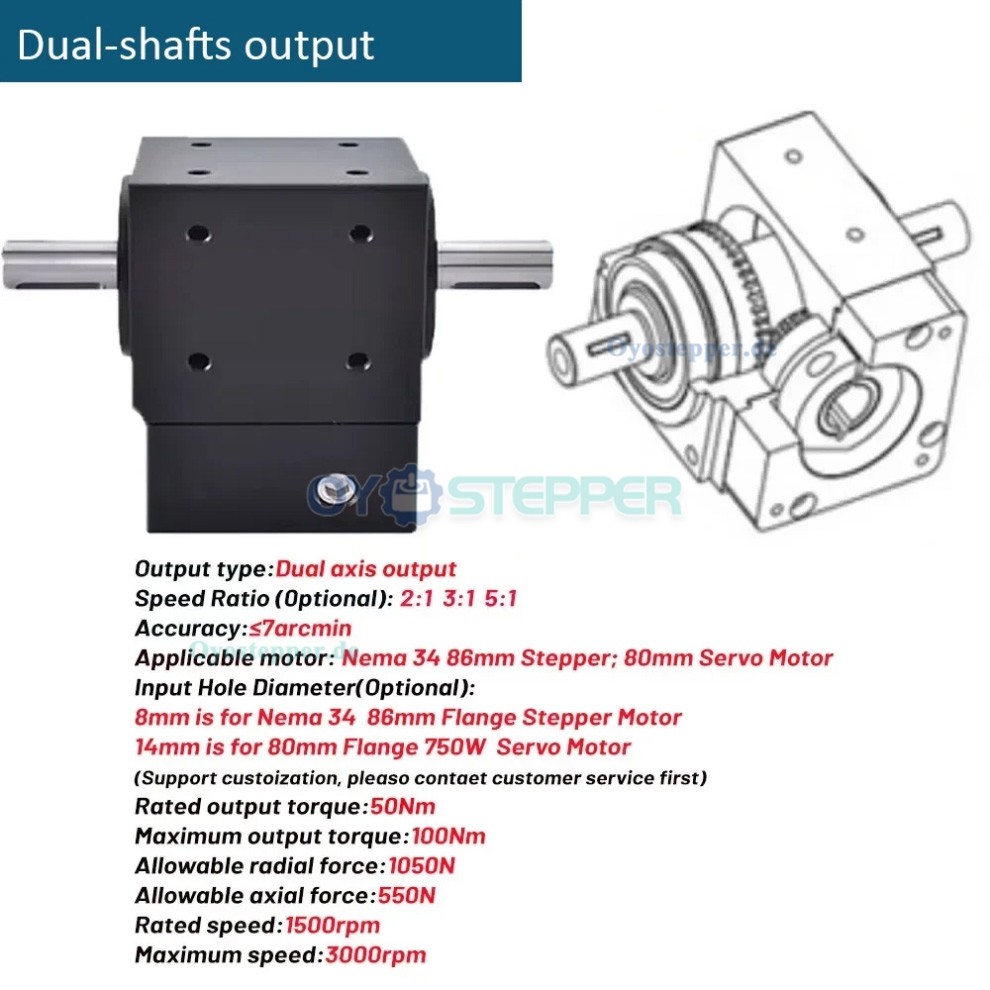

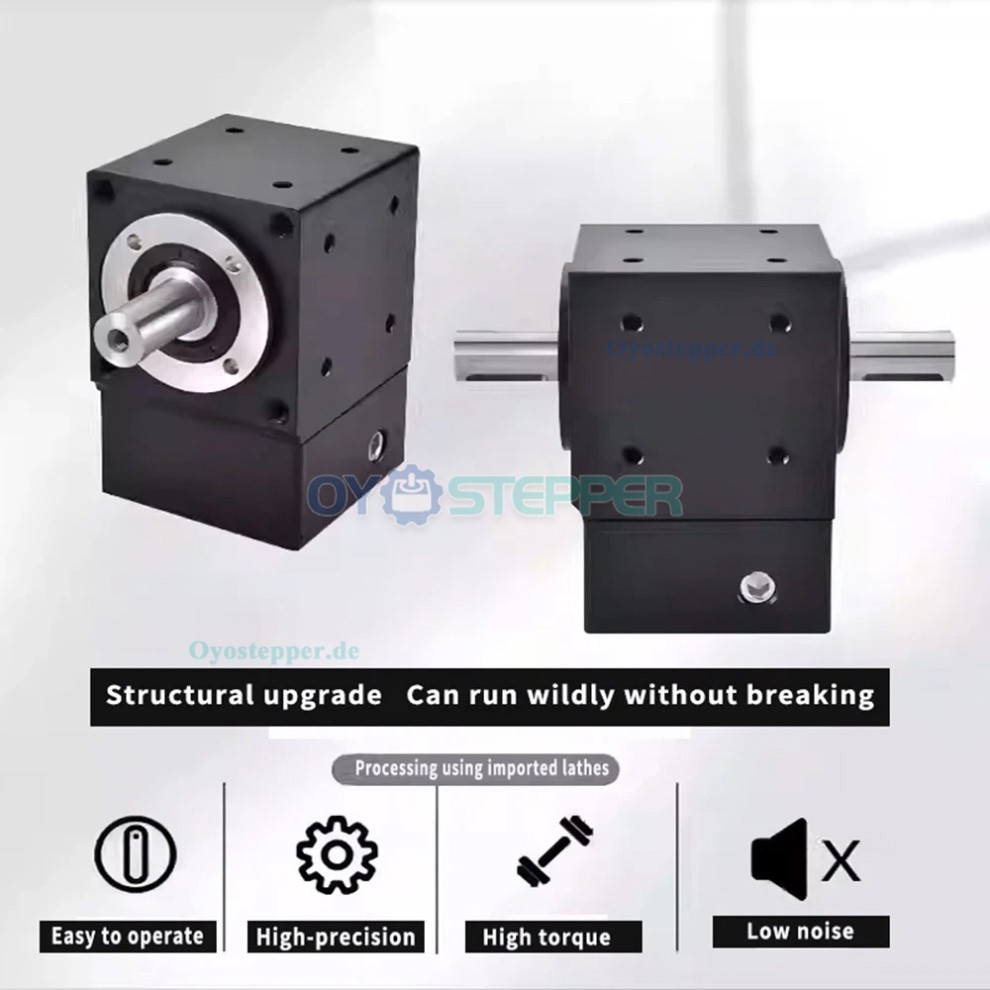

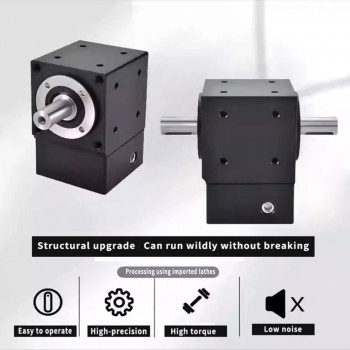

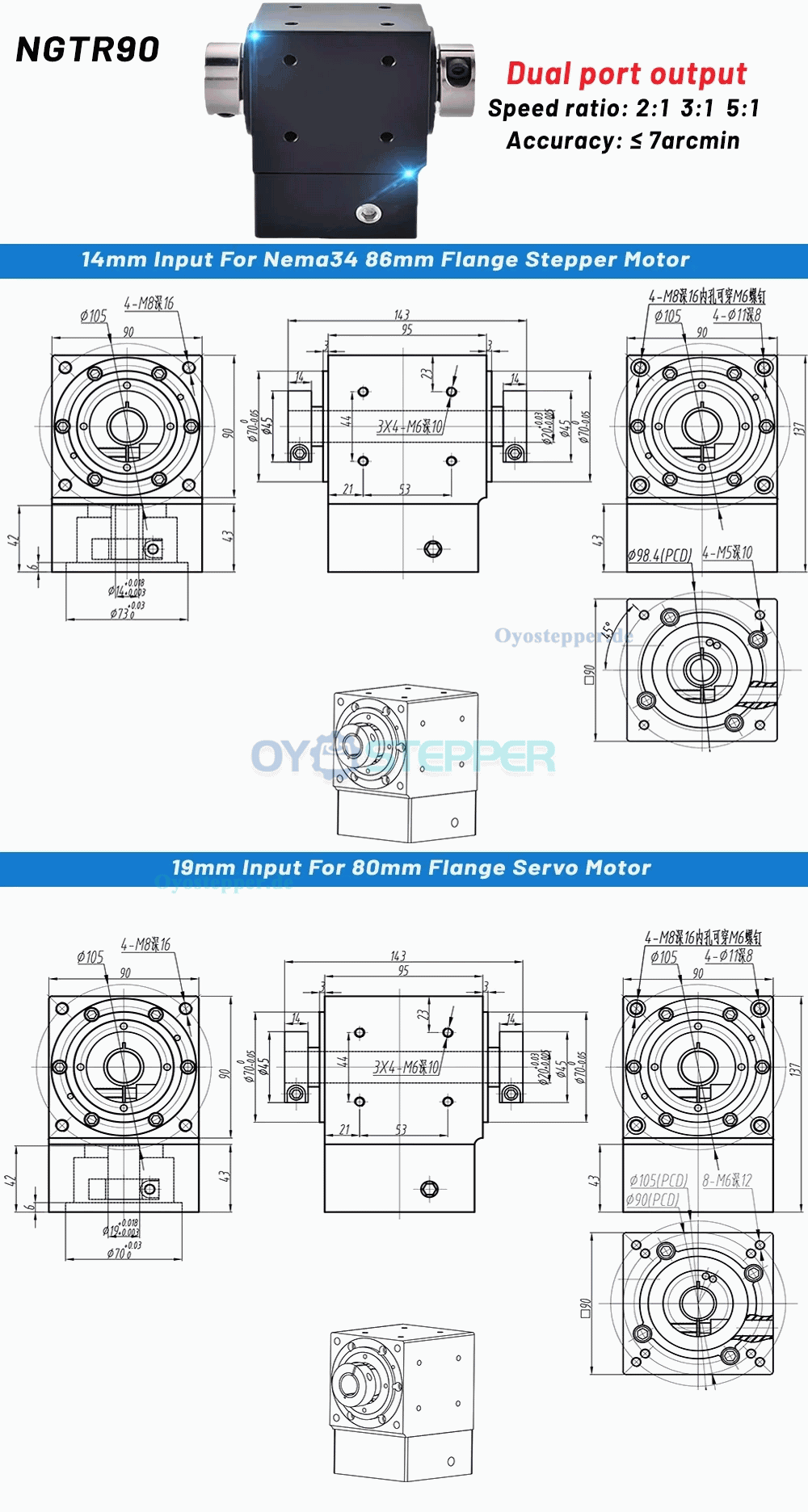

Double Shaft Output

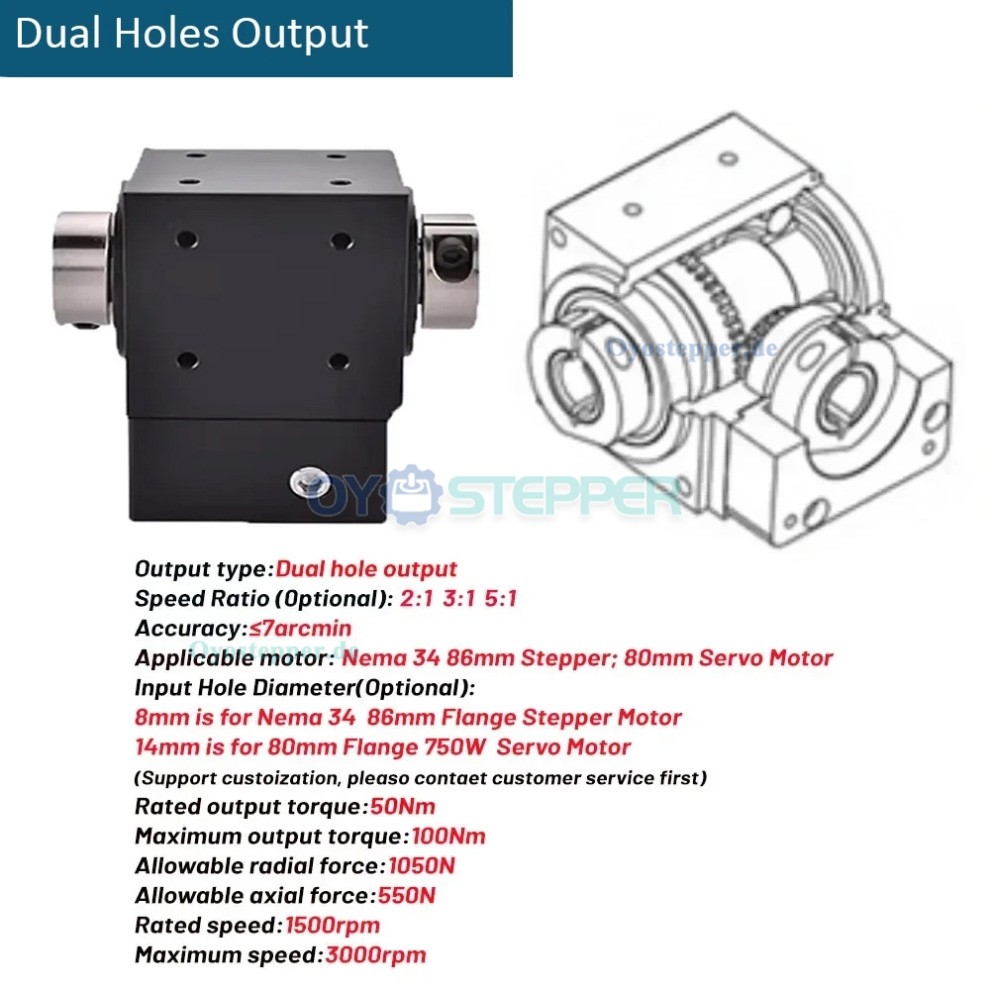

Double Hole Output
For Nema 34 Stepper Motor 14mm Shaft
For 80mm AC Servo Motor 19mm Shaft


Description:

Right Angle Steering Gearbox with backlash ≤7 arc minutes.

Available in single shaft, single hole, double shafts, and double holes output types to support different installation configurations.

Compatible with NEMA 34 86mm stepper motors/80mm servo motor. Ratio 2:1, 3:1 or 5:1 are optional.

Maximum speed: 3000 rpm; Maximales Ausgangsdrehmoment: 25 Nm.

Protection level: IP65; Operation is simple and user-friendly.

NEMA34 hole output type: nominal ratio 5:1, rated speed 1500 rpm.

Trägheitsmoment: 0.08 kg·cm²; Allowable axial force: 160 N.

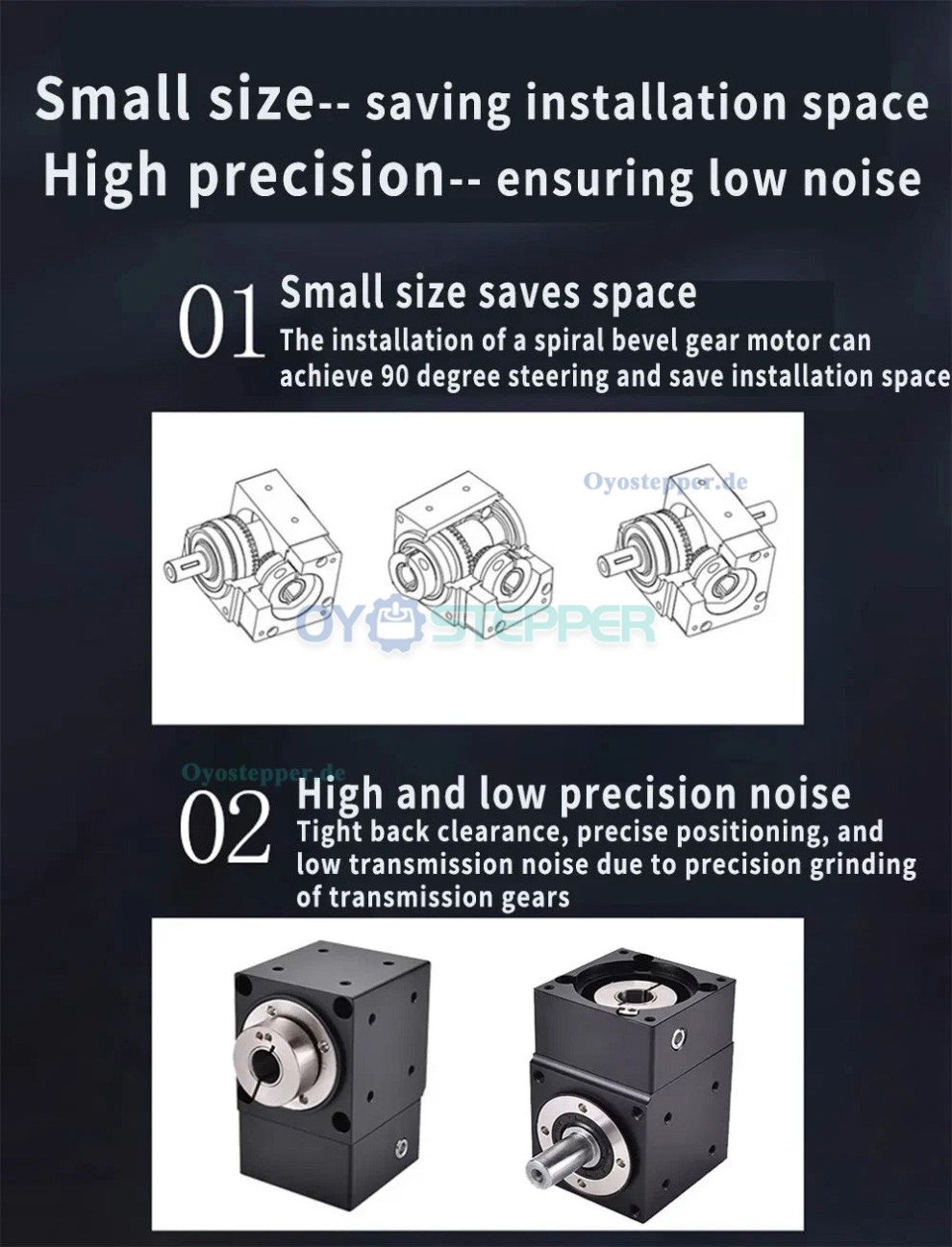

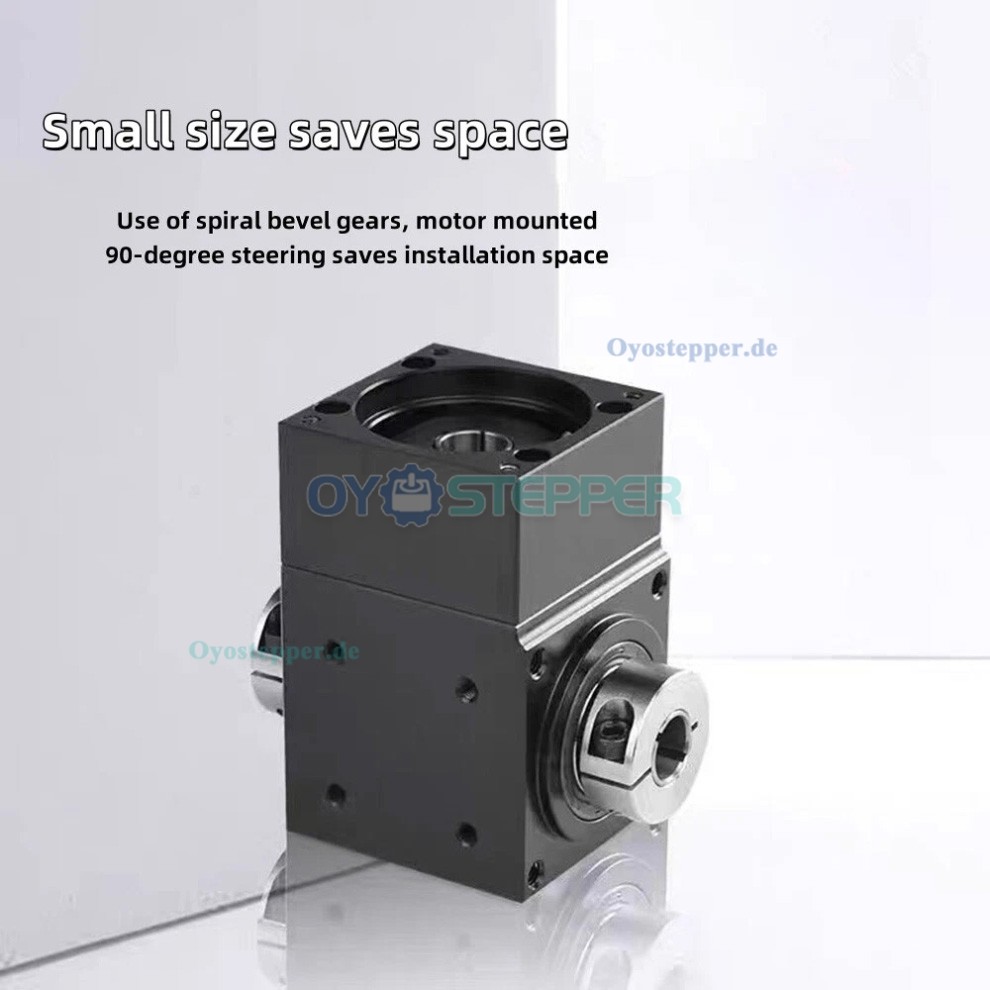

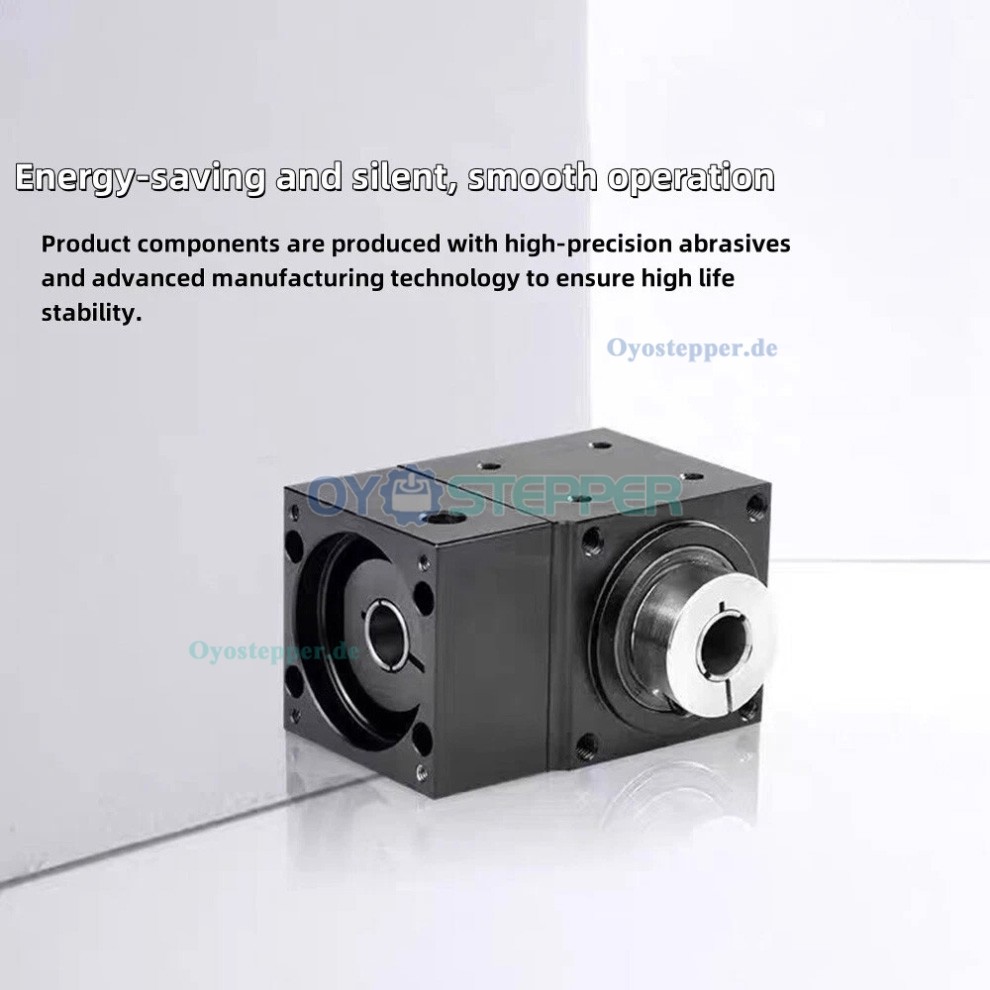

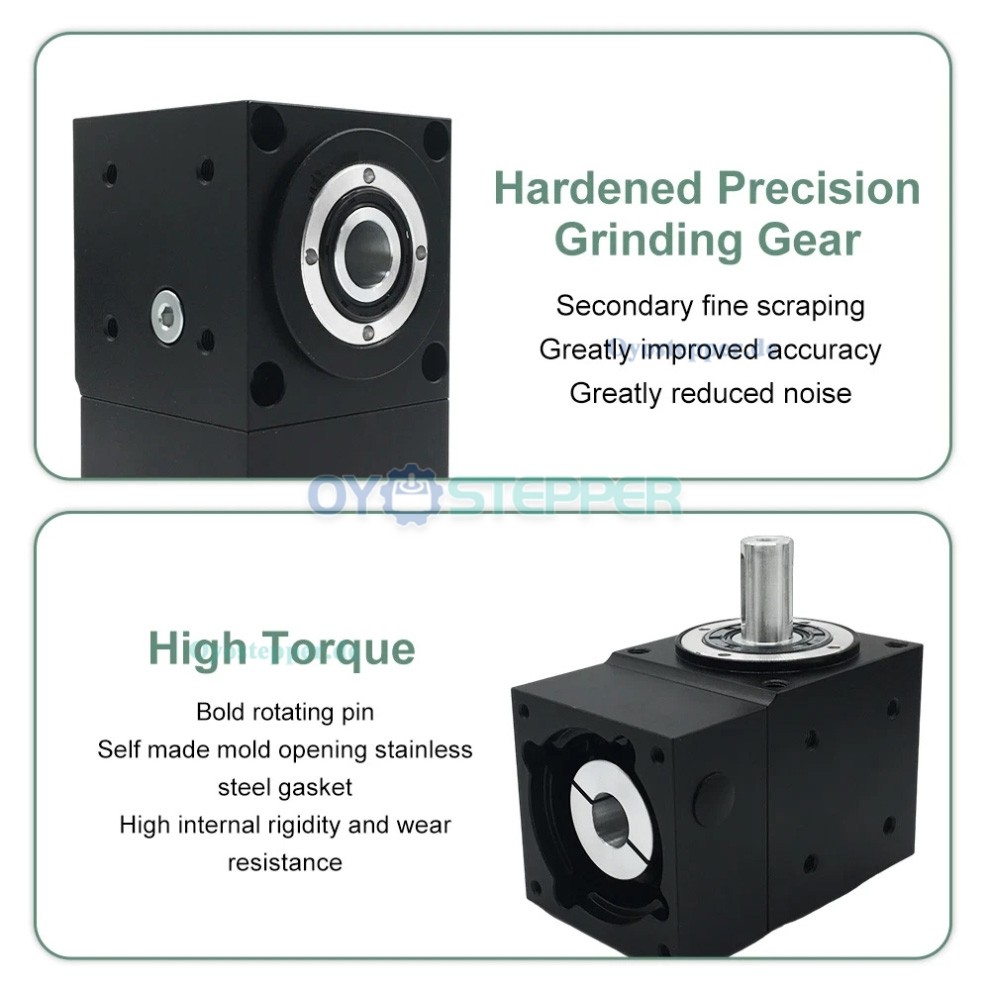

Uses spiral bevel gears to achieve 90° transmission, helping reduce installation space.


Applications:
Industrial Automation: Robotic arms, conveyor systems, pick-and-place machines.
CNC & Machinery: Rotary tables, spindle drives, milling equipment.
Medical Devices: Imaging systems, lab automation requiring precise motion.
Packaging & Printing: High-speed labeling, cutting, and winding mechanisms.


Parameter:
Nenndrehmoment (Nm): 50;
Maximales Ausgangsdrehmoment (Nm): 100;
Rated speed (rpm): 1500;
Maximum speed (rpm): 3000;
Spiel(arcmin): 7;
Allowable radial force (N):1050;
Allowable axial force (N):550;
Trägheitsmoment (Kg. cm ²): 0.08;
Work efficiency: 97;
Service life h ≥ 20000;
Operating environment temperature: ° C -20~+90;

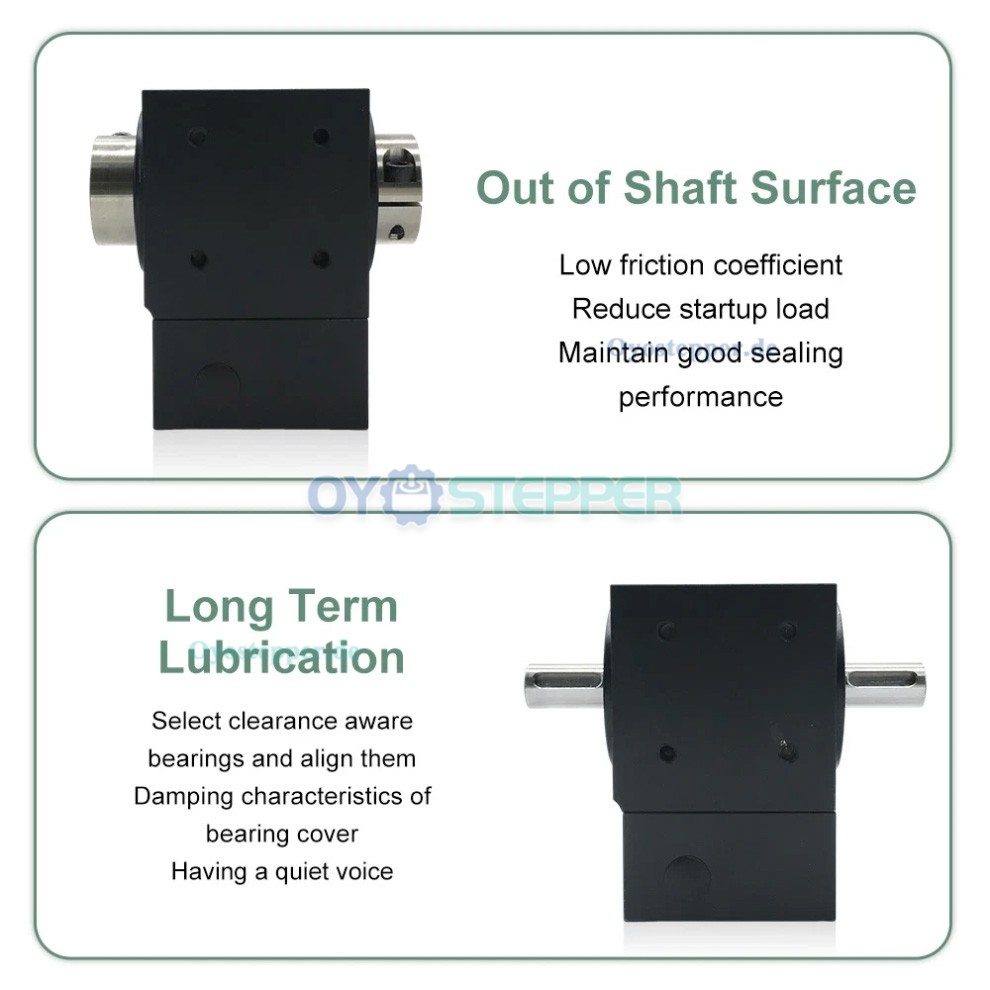

Lubrication method (Lup): Long term lubrication;
Protection level (PC): IP65;
Installation method (MP): in any direction;
Noise Db ≤ 62;
