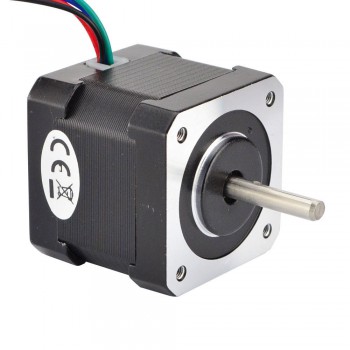

Nema 17 Schrittmotor Bipolar 1,8 Grad 36Ncm 0,85A 5,4V 4 Drähte Hybrid-Schrittmotor
Nema 17 Schrittmotor Bipolar 1,8 Grad 36Ncm 0,85A 5,4V 4 Drähte Hybrid-Schrittmotor
Dieser Bipolar Nema 17 Schrittmotor mit Schrittwinkel 1.8deg und Größe 42x42x39mm. Es hat 4 Drähte, jede Phase zieht Strom 0.85A bei 5.4V, mit Haltemoment 36Ncm (51oz.in).
Elektrische Spezifikation
- Hersteller #: 17HS15-0854S
- Motorentyp: Bipolar
- Schrittwinkel: 1.8 Grad
- Haltemoment: 36Ncm(51oz.in)
- Strom: 0.85A
- Stromspannung: 5.4V
- Phasenwiderstand: 6.3ohms
- Induktivität: 10mH ± 20%(1KHz)
Physikalische Spezifikation
- Rahmengröße: 42 x 42mm
- Körper Länge: 39mm
- Schaftdurchmesser: Φ5mm
- Schaftlänge: 24mm
- Double D-Schnittlänge: 16.5mm
- Anzahl Leiter: 4
- Leitungslänge: 400mm
- Gewicht: 290g
Verbindung
A+
|
A-
|
B+
|
B-
|
Schwarz
|
Grün
|
Rot
|
Blau
|
Ressourcen
Vollständiges Datenblatt: 17HS15-0854S.pdf
Drehmomentkurve: 17HS15-0854S_Torque_Curve.pdf
Elektrische Spezifikation | |
---|---|
Bipolar/Unipolar | Bipolar |
Haltemoment (Ncm) | 36 |
Haltemoment (oz.in) | 51 |
Induktivität(mH) | 10 |
Phasenwiderstand(ohm) | 6.3 |
Nennstrom (A) | 0.85 |
Schrittwinkel(°) | 1.8 |
Physikalische Spezifikation | |
Körper Länge(mm) | 39 |
Rahmengröße(mm) | 42x42 |
Einzelne Welle/Doppelwelle | Einzelne Welle |
Abtriebswellentyp | D-Cut |
Schaftdurchmesser(mm) | 5 |
Schaftlänge(mm) | 24 |
Anzahl der Leiter | 4 |
Leitungslänge(mm) | 400 |
Gewicht(g) | 280 |
- Stecker: Molex, Harwin, Tyco/AMP, JST etc.
- Anschlussdrähte & Kabel: Sonderlängen, Schutzschlauch
- Welle: Rund, D-Cut, Quergebohrt, Keilnut, Gewinde oder Hohl
- Wicklung: Widerstand, Induktivität, Nennstrom, usw.
