NEMA 23 Unverlierbarer Acme-Linearschrittmotor 4A 75mm Stapel Führen 5.08mm(0.2") Reiseentfernung 63.5mm
NEMA 23 Unverlierbarer Acme-Linearschrittmotor 4A 75mm Stapel Führen 5.08mm(0.2") Reiseentfernung 63.5mm

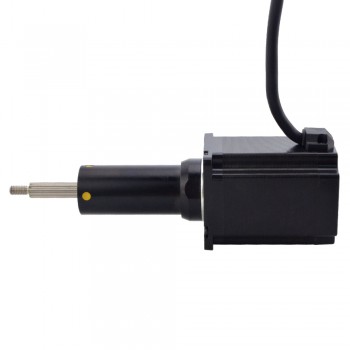

Bei diesem Modell handelt es sich um einen Nema 23 Captive ACME Screw Linear Schrittmotor mit 75mm Körperlänge, 1,8 Grad Schrittwinkel und 4,0A Nennstrom. Es ist mit einem Durchmesser von 6,35 mm (0,25 Zoll), einer Strichlänge von 63,5 mm (2,5 Zoll) integriert, der lineare Hub beträgt 5,08 mm (0,2 Zoll) pro Umdrehung.
Elektrische Spezifikation
Hersteller #: 23C30S4004HG5-064RS
Motorentyp: Gefangen
Schrittwinkel: 1.8°
Haltemoment: 2Nm(283.28oz.in)
Strom: 4.0A
Phasenwiderstand: 0.9ohms
Induktivität: 4.3mH±20%(1KHz)
Physikalische Spezifikation
Rahmengröße: 57 x 57mm
Körper Länge: 75mm
Strichlänge: 63.5mm(2.5")
Leitspindeldurchmesser: Φ9.525mm(0.375")
Führen/Schritt: 0.0254mm(0.001")
Führungsweg/Umdrehung: 5.08mm(0.2")
Anzahl Leiter: 4
Leitungslänge: 500mm
Verbindung
A+ | A- | B+ | B- |
Rot | Rot/Weiss | Grün | Grün/Weiss |
-
Lead Screw End Machining
-
Anti-Backlash Nut
-
Encoders
-
Brakes
-
Wiring, Cabling and Connectors
- Flying wire leads or connectors
- Twisting wire leads
- Heat shrink or expandable tubing
- Cable housings
-
Teflon Coated Screw
OYOSTEPPER provides anti-backlash nut for external lead screw linear actuator (except Size 34) and non-captive lead screw linear actuator (except size 24 and 34).
There should be a nominal backlash between lead screw and OYOSTEPPER standard plastic nut after millions of cycles. OYOSTEPPER guarantees few millions of cycles but physical backlash can be increased. To reduce or eliminate backlash, OYOSTEPPER provides spring pressure structure of anti-backlash nut.
According to application requirements, customer can easily choose encoders via index output or non-index type and thru output method as single ended or differential output.
Also various resolution can be chosen freely for easier and precise positioning.
All OYOSTEPPER standard encoders are optical and incremental. When you choose encoder, please carefully look into options especially size, resolution, index and output method.
Especially Vertical applications or holding motors from sudden power-off status, OYOSTEPPER standard power-off brakes for NEMA14, 17, 23, 24 and 34 sizes will be helpful to reduce concern of customers.
If customer's applications require greaseless screw and nut combination, OYOSTEPPER offers teflon coated lead screw of stepper linear actuator.
Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.
Teflon coating can be applied in the whole range of lead screw options in OYOSTEPPER and all types of linear actuators such as External, Non-Captive, and Captive.
In addition, Anti-backlash nut also can be combined with teflon coated screw too.
Elektrische Spezifikation | |
---|---|
Bipolar/Unipolar | Bipolar |
Induktivität(mH) | 4.3 |
Phasenwiderstand(ohm) | 0.9 |
Nennstrom (A) | 4.0 |
Schrittwinkel(deg.) | 1.8 |
Linearmotortyp | Gefangen |
Physikalische Spezifikation | |
Körper Länge(mm) | 75 |
Rahmengröße(mm) | Nema 23 (57 x 57) |
Leitungslänge(mm) | 500 |
Leitspindeldurchmesser(mm) | 9.525 |
Anzahl der Leiter | 4 |
Führungsweg/Umdrehung(mm) | 5.08 |
Leitspindelhub/Schrittlänge(mm) | 0.0254 |
IP-Bewertung | 40 |
