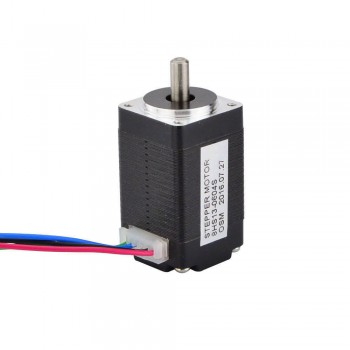

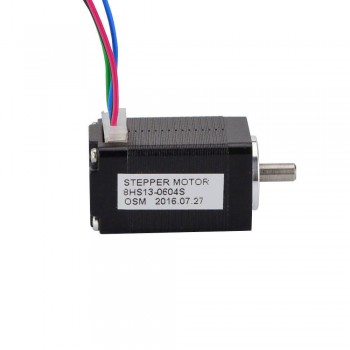

Nema 8 Schrittmotor Bipolar 1,8 Grad 2Ncm 0.6A 3.9V 4 Drähte Elektromotor Mini Schrittmotor
Nema 8 Schrittmotor Bipolar 1,8 Grad 2Ncm 0.6A 3.9V 4 Drähte Elektromotor Mini Schrittmotor
Elektrische Spezifikation
- Hersteller #: 8HS13-0604S
- Motorentyp: Bipolar
- Schrittwinkel: 1.8 Grad
- Haltemoment: 2Ncm(2.83oz.in)
- Strom: 0.6A
- Stromspannung: 3.9V
- Phasenwiderstand: 6.5ohms
- Induktivität: 2.2mH ± 20%(1KHz)
Physikalische Spezifikation
- Rahmengröße: 20 x 20mm
- Körper Länge: 33mm
- Schaftdurchmesser: Φ4mm
- Schaftlänge: 10mm
- Double D-Schnittlänge: 7mm
- Anzahl Leiter: 4
- Leitungslänge: 300mm
- Gewicht: 70g
Verbindung
A+
|
A-
|
B+
|
B-
|
Schwarz
|
Grün
|
Rot
|
Blau
|
Ressourcen
Vollständiges Datenblatt: 8HS13-0604S.pdf
Elektrische Spezifikation | |
---|---|
Bipolar/Unipolar | Bipolar |
Haltemoment (Ncm) | 2 |
Haltemoment (oz.in) | 2.83 |
Induktivität(mH) | 2.2 |
Phasenwiderstand(ohm) | 6.5 |
Nennstrom (A) | 0.6 |
Schrittwinkel(°) | 1.8 |
Physikalische Spezifikation | |
Körper Länge(mm) | 33 |
Rahmengröße(mm) | 20x20 |
Einzelne Welle/Doppelwelle | Einzelne Welle |
Abtriebswellentyp | D-Cut |
Schaftdurchmesser(mm) | 4 |
Schaftlänge(mm) | 10 |
Anzahl der Leiter | 4 |
Leitungslänge(mm) | 300 |
Gewicht(g) | 70 |
- Stecker: Molex, Harwin, Tyco/AMP, JST etc.
- Anschlussdrähte & Kabel: Sonderlängen, Schutzschlauch
- Welle: Rund, D-Cut, Quergebohrt, Keilnut, Gewinde oder Hohl
- Wicklung: Widerstand, Induktivität, Nennstrom, usw.
