Nema 14 Schrittmotor 1,8 Grad 12.5Ncm 1A 3.5V 4 Drähte Unipolar Kleiner Hybrid-Schrittmotor
Nema 14 Schrittmotor 1,8 Grad 12.5Ncm 1A 3.5V 4 Drähte Unipolar Kleiner Hybrid-Schrittmotor

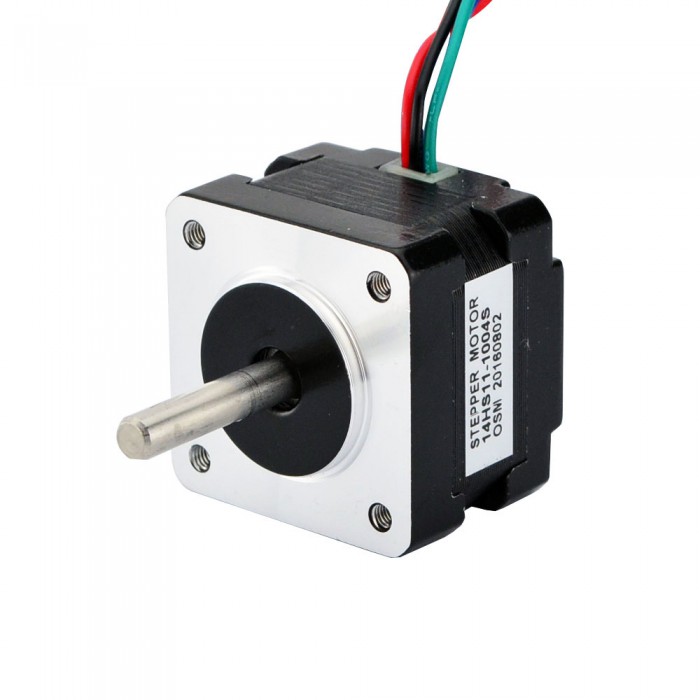

Dieser Bipolar Nema 14 Schrittmotor mit Schrittwinkel 1.8deg und Größe 35x35x28mm. Es hat 4 Drähte, jede Phase zieht 1 A bei 3.5V, mit Haltemoment 12.5Ncm (17.7oz.in).
Elektrische Spezifikation
- Hersteller #: 14HS11-1004S
- Motorentyp: Bipolar
- Schrittwinkel: 1.8 Grad
- Haltemoment: 12.5Ncm(17.7oz.in)
- Strom: 1.0A
- Stromspannung:3.5V
- Phasenwiderstand: 3.5ohms
- Induktivität: 3.5mH ± 20%(1KHz);
Physikalische Spezifikation
- Rahmengröße: 35 x 35mm
- Körper Länge: 28mm
- Schaftdurchmesser: Φ5mm
- Schaftlänge: 24mm
- Double D-Schnittlänge: 15mm
- Anzahl Leiter: 4
- Leitungslänge: 300mm
- Gewicht: 140g
Verbindung
A+
|
A-
|
B+
|
B-
|
Schwarz
|
Grün
|
Rot
|
Blau
|
Ressourcen
Vollständiges Datenblatt: 14HS11-1004S.pdf
Elektrische Spezifikation | |
---|---|
Bipolar/Unipolar | Bipolar |
Haltemoment (Ncm) | 12.5 |
Haltemoment (oz.in) | 17.7 |
Induktivität(mH) | 3.5 |
Phasenwiderstand(ohm) | 3.5 |
Nennstrom (A) | 1 |
Schrittwinkel(°) | 1.8 |
Physikalische Spezifikation | |
Körper Länge(mm) | 28 |
Rahmengröße(mm) | 35x35 |
Einzelne Welle/Doppelwelle | Einzelne Welle |
Abtriebswellentyp | D-Cut |
Schaftdurchmesser(mm) | 5 |
Schaftlänge(mm) | 20.5 |
Anzahl der Leiter | 4 |
Leitungslänge(mm) | 300 |
Gewicht(g) | 120 |
- Stecker: Molex, Harwin, Tyco/AMP, JST etc.
- Anschlussdrähte & Kabel: Sonderlängen, Schutzschlauch
- Welle: Rund, D-Cut, Quergebohrt, Keilnut, Gewinde oder Hohl
- Wicklung: Widerstand, Induktivität, Nennstrom, usw.
