Runder Nema 14 Schrittmotor 0,9 Grad 5Ncm 0,5A 8,5V Φ36x12mm 4 Drähte Bipolar Hybrid-Schrittmotor
Runder Nema 14 Schrittmotor 0,9 Grad 5Ncm 0,5A 8,5V Φ36x12mm 4 Drähte Bipolar Hybrid-Schrittmotor

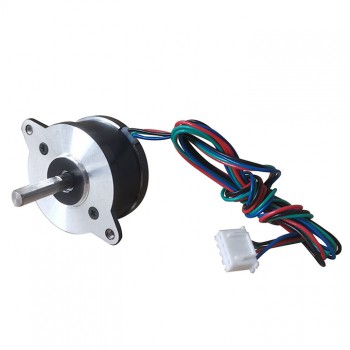

Dieser runde Hybrid Bipolar Nema 14 Schrittmotor mit Schrittwinkel 0.9deg und Größe Φ36x12mm. Es hat 4 Drähte, jede Phase zieht 0.5A bei 8.5V, mit Haltemoment 7Ncm (9.91oz.in).
Elektrische Spezifikation
- Hersteller #: 14HR05-0504S
- Motorentyp: Bipolar
- Schrittwinkel: 0.9 Grad
- Haltemoment: 5Ncm (7.08oz.in)
- Strom: 0.5A
- Stromspannung: 8.5V
- Phasenwiderstand: 17ohms
- Induktivität: 6.5mH ± 20%(1KHz)
Physikalische Spezifikation
- Rahmengröße: Φ36mm
- Körper Länge: 12.5mm
- Schaftdurchmesser: Φ5mm
- Schaftlänge: 10.5mm
- Double D-Schnittlänge: 5mm
- Anzahl Leiter: 4
- Leitungslänge: 300mm
- Gewicht: 50g
Verbindung
A+
|
A-
|
B+
|
B-
|
Schwarz
|
Grün
|
Rot
|
Blau
|
Ressourcen
Vollständiges Datenblatt: 14HR05-0504S.pdf
Elektrische Spezifikation | |
---|---|
Bipolar/Unipolar | Bipolar |
Haltemoment (Ncm) | 5 |
Haltemoment (oz.in) | 7.08 |
Induktivität(mH) | 6.5 |
Phasenwiderstand(ohm) | 17 |
Nennstrom (A) | 0.5 |
Schrittwinkel(°) | 0.9 |
Physikalische Spezifikation | |
Körper Länge(mm) | 12 |
Rahmengröße(mm) | Ф36.5 |
Einzelne Welle/Doppelwelle | Einzelne Welle |
Abtriebswellentyp | D-Cut |
Schaftdurchmesser(mm) | 5 |
Schaftlänge(mm) | 10.5 |
Anzahl der Leiter | 4 |
Leitungslänge(mm) | 300 |
Gewicht(g) | 60 |
- Stecker: Molex, Harwin, Tyco/AMP, JST etc.
- Anschlussdrähte & Kabel: Sonderlängen, Schutzschlauch
- Welle: Rund, D-Cut, Quergebohrt, Keilnut, Gewinde oder Hohl
- Wicklung: Widerstand, Induktivität, Nennstrom, usw.
