JMC Pufferkondensator-Modul 4700µF / 63V zur DIN-Schienenmontage

JMC Buffer Capacitor Module Part 4700uF / 63V for DIN Rail Mounting

Buffer capacitor module

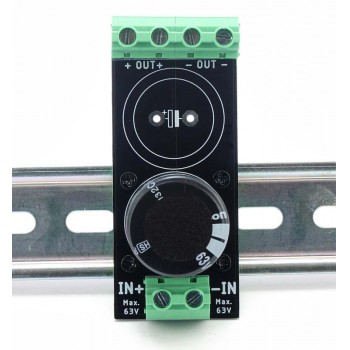

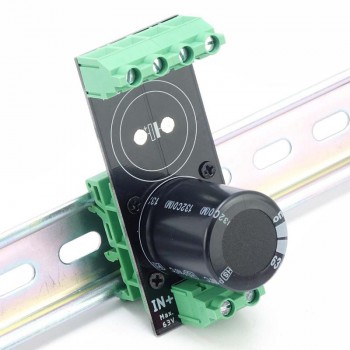

For mounting on DIN rail.

Robust design, 30A current carrying capacity.

Connected between power supply and consumer.

4700uF / 63V

For power supplies with 4-7A continuous current output

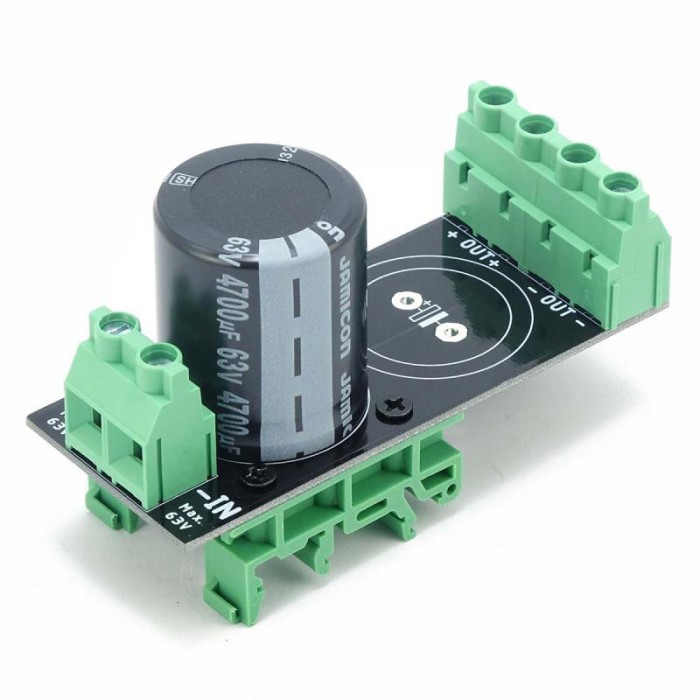

Buffer capacitor module for DIN rail mounting.

Robust design, with double-sided printed circuit board with 70um copper and solid shear terminals which can carry 30A current permanently.

Connects between power supply and load.

Features:

Capacitors are a useful addition to switching power supplies. They buffer the voltage and supply high peak currents during short-time loads. This results in more torque and higher power for the motors. At the same time, the power supply itself is subjected to less load.

Charging capacitors also permanently smooth voltage peaks of the motor-induced back-EMF signal. Similarly, in switched-mode power supplies, they also smooth the pulsating DC current that occurs during rectification of AC voltage: "wavy" operating voltage becomes "smooth".

Thanks to line resistance, the capacitor in the DC link also acts as an RC element and low-pass filter. If the motor generates large voltage peaks in the back EMF signal during rapid acceleration or braking ramps, this threatens the dielectric strength of the components on the driver board. The filter circuit permanently smooths voltage spikes to a low voltage. This protects the components from back EMF voltage damage.

Capacitors can be connected in parallel to add their capacitances.

Avoid capacitances higher than the rule of thumb 1A motor current ~ 1000 µF capacitance. Otherwise capacitors charge / discharge too long and slow down the system.

Recommended for loads with approx, 5A nominal current consumption.

Peak currents can be considerably higher.

 Specification:

1 input terminal

2 output terminals for easier distribution

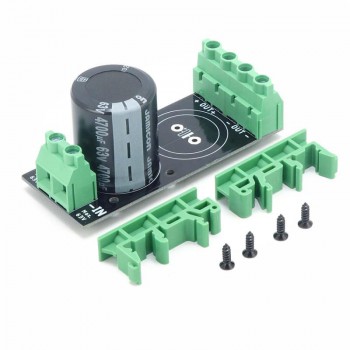

Enclosed DIN rail mounting bracket

Capacity: 4700 uF / 63V

Tolerance: 20%

Maximum voltage: 63V

Temperature range: -40 ~ 105°C

W x H x D: 90 x 58 x 37 mm
