NEMA 17 Externer linearer Schrittmotor Kugelumlaufspindel 1.5A 1.8° 0.3Nm Schrittmotor Linearaktuator
NEMA 17 Externer linearer Schrittmotor Kugelumlaufspindel 1.5A 1.8° 0.3Nm Schrittmotor Linearaktuator
Dieses Modell ist ein linearer Nema 17-Kugelumlauf-Schrittmotor mit einer Körperlänge von 34 mm, einem Schrittwinkel von 1,8 Grad und einem Nennstrom von 1,5 A. Es ist mit einer Kugelumlaufspindel mit einem Durchmesser von 6 mm (0,2362 Zoll) und einer Länge von 150 mm (5,9055 Zoll) und einer Stahlgewindemutter integriert. Der lineare Hub beträgt 1 mm (0,03937 Zoll) pro Umdrehung. Es hat die Eigenschaften hoher Leistung, lange Lebensdauer, niedrig Lärm und hohe Effizienz.
Elektrische Spezifikation
Hersteller #: 17E13S1504BSM5-150RS
Motorentyp: Extern (Kugelumlaufspindel)
Schrittwinkel: 1.8°
Haltemoment: 0.3Nm(42.48oz.in)
Strom: 1.5A
Phasenwiderstand: 1.8ohms
Induktivität: 2.2mH±20%(1KHz)
Genauigkeitsgrad: C7
Physikalische Spezifikation
Rahmengröße: 42 x 42mm
Körper Länge: 34mm
Leitspindellänge: 150mm(5.9055")
Leitspindeldurchmesser: Φ6mm(0.2362")
Führen/Schritt: 0.005mm(0.0001969")
Führungsweg/Umdrehung: 1mm(0.03937")
Anzahl Leiter: 4
Leitungslänge: 500mm
Verbindung
A+ | A- | B+ | B- |
Rot | Rot/Weiss | Grün | Grün/Weiss |
Ressourcen

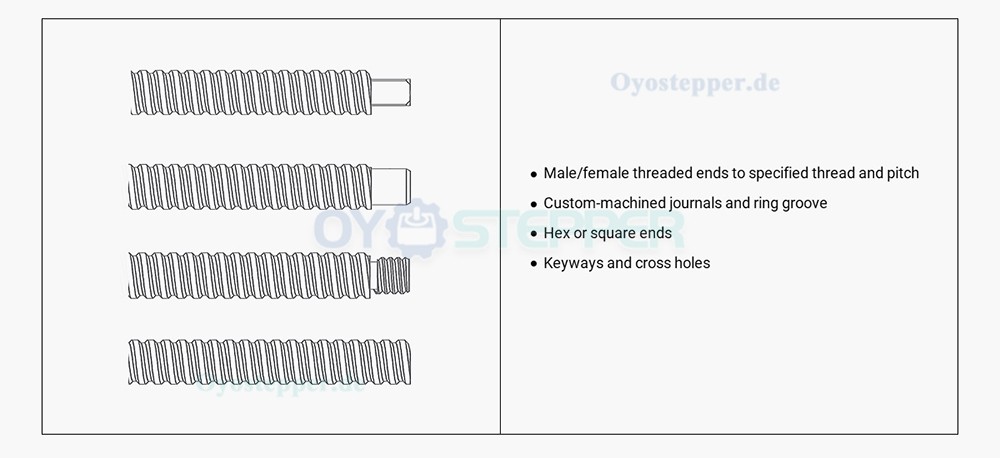

Lead Screw End Machining
Anti-Backlash Nut
OYOSTEPPER provides anti-backlash nut for external lead screw linear actuator (except Size 34) and non-captive lead screw linear actuator (except size 24 and 34).
There should be a nominal backlash between lead screw and OYOSTEPPER standard plastic nut after millions of cycles. OYOSTEPPER guarantees few millions of cycles but physical backlash can be increased. To reduce or eliminate backlash, OYOSTEPPER provides spring pressure structure of anti-backlash nut.

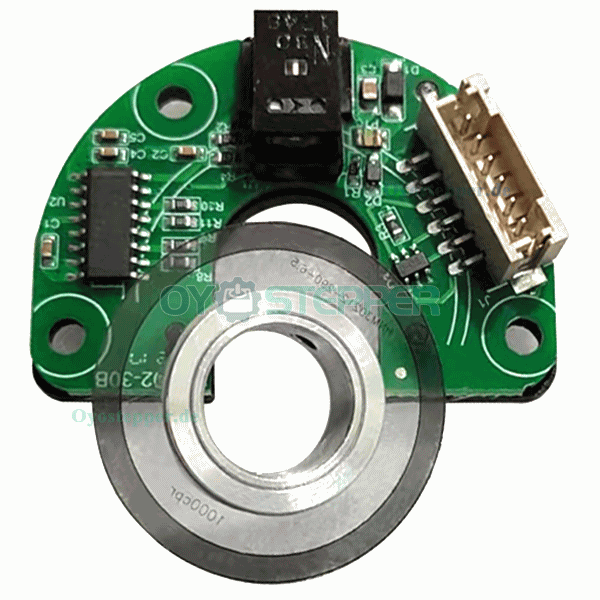

Encoders
According to application requirements, customer can easily choose encoders via index output or non-index type and thru output method as single ended or differential output.
Also various resolution can be chosen freely for easier and precise positioning.
All OYOSTEPPER standard encoders are optical and incremental. When you choose encoder, please carefully look into options especially size, resolution, index and output method.

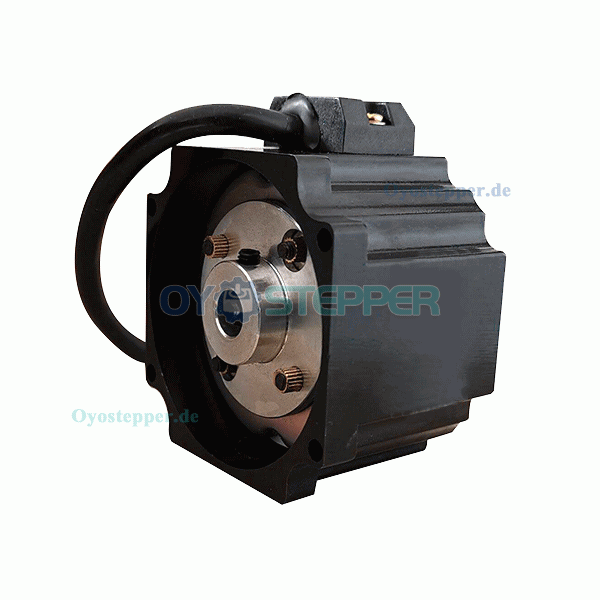

Brakes
Especially Vertical applications or holding motors from sudden power-off status, OYOSTEPPER standard power-off brakes for NEMA14, 17, 23, 24 and 34 sizes will be helpful to reduce concern of customers.

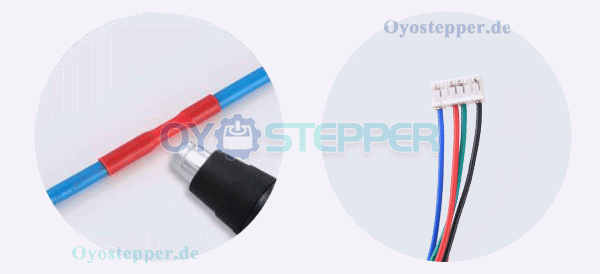

Wiring, Cabling and Connectors
Flying wire leads or connectors
Twisting wire leads
Heat shrink or expandable tubing
Cable housings

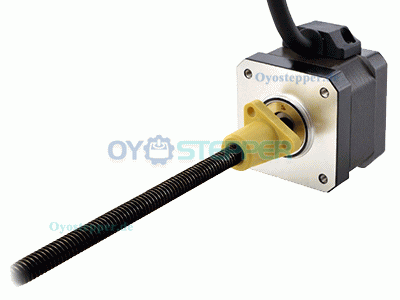

Teflon Coated Screw
If customer's applications require greaseless screw and nut combination, OYOSTEPPER offers teflon coated lead screw of stepper linear actuator.
Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.
Teflon coating can be applied in the whole range of lead screw options in OYOSTEPPER and all types of linear actuators such as External, Non-Captive, and Captive.
In addition, Anti-backlash nut also can be combined with teflon coated screw too.
Elektrische Spezifikation | |
---|---|
Bipolar/Unipolar | Bipolar |
Induktivität(mH) | 2.2 |
Phasenwiderstand(ohm) | 1.8 |
Nennstrom (A) | 1.5 |
Schrittwinkel(deg.) | 1.8 |
Linearmotortyp | Extern(Ball Screw) |
Physikalische Spezifikation | |
Körper Länge(mm) | 34 |
Rahmengröße(mm) | Nema 17 (42 x 42) |
Leitungslänge(mm) | 500 |
Leitspindeldurchmesser(mm) | 6 |
Leitspindellänge(mm) | 150 |
Anzahl der Leiter | 4 |
Führungsweg/Umdrehung(mm) | 1 |
Leitspindelhub/Schrittlänge(mm) | 0.005 |
IP-Bewertung | 40 |
