NEMA 17 Externer Acme-Linearschrittmotor 2,5 A 0,5Nm 1,8 Grad Schrittmotor Linearaktuator
NEMA 17 Externer Acme-Linearschrittmotor 2,5 A 0,5Nm 1,8 Grad Schrittmotor Linearaktuator
Bei diesem Modell handelt es sich um einen Nema 17 ACME Schrauben-Linearschrittmotor mit 48mm Körperlänge, 1,8 Grad Schrittwinkel und 2,5A Nennstrom. Es ist mit einem Durchmesser von Φ6,35 mm (0,25 Zoll), einer ACME-Schraubenlänge von 150 mm (5,9055 Zoll) und einer POM-Schraubenmutter integriert, der lineare Hub beträgt 6,35 mm (0,25 Zoll) pro Umdrehung. Es hat die Eigenschaften hoher Leistung, lang Lebensdauer, geringe Geräuschentwicklung und hohe Effizienz.
Elektrische Spezifikation
Hersteller #: 17E19S2504RF5-150RS
Motorentyp: Extern(ACME)
Schrittwinkel: 1.8°
Haltemoment: 0.5Nm(70.82oz.in)
Strom: 2.5A
Phasenwiderstand: 0.8ohms
Induktivität: 1.8mH±20%(1KHz)
Physikalische Spezifikation
Rahmengröße: 42 x 42mm
Körper Länge: 48mm
Leitspindellänge: 150mm(5.9055")
Leitspindeldurchmesser: Φ6.35mm(0.25")
Führen/Schritt: 0.03175mm(0.00125")
Führungsweg/Umdrehung: 6.35mm(0.25")
Anzahl Leiter: 4
Anzahl der Thread-Starts: 4
Leitungslänge: 500mm
Verbindung
A+ | A- | B+ | B- |
Rot | Rot/Weiss | Grün | Grün/Weiss |
Ressourcen
- 17E19S2504RF5-150RS_Full_Datasheet.pdf
- 17E19S2504RF5-150RS_Thrust_Force_Curve.pdf
- 17E19S2504RF5-150RS.STEP

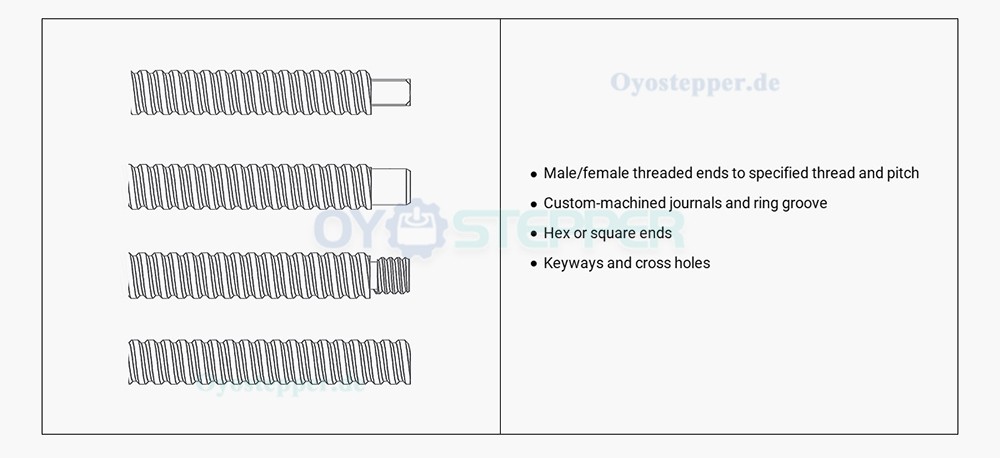

Lead Screw End Machining

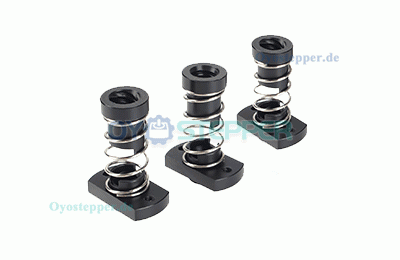

Anti-Backlash Nut
OYOSTEPPER provides anti-backlash nut for external lead screw linear actuator (except Size 34) and non-captive lead screw linear actuator (except size 24 and 34).
There should be a nominal backlash between lead screw and OYOSTEPPER standard plastic nut after millions of cycles. OYOSTEPPER guarantees few millions of cycles but physical backlash can be increased. To reduce or eliminate backlash, OYOSTEPPER provides spring pressure structure of anti-backlash nut.

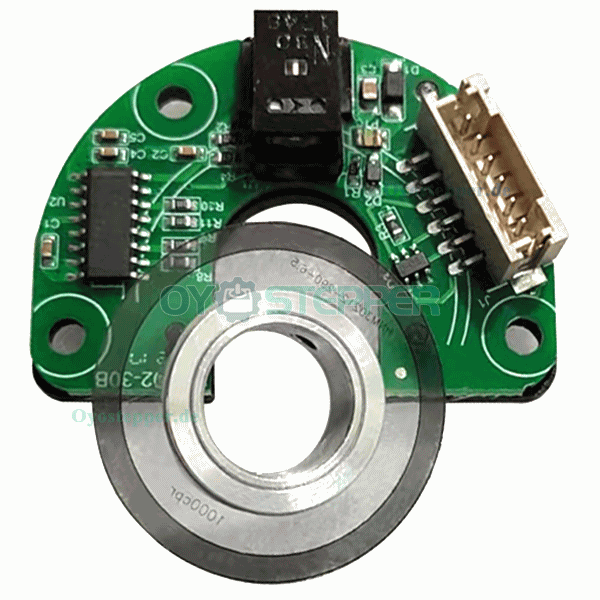

Encoders
According to application requirements, customer can easily choose encoders via index output or non-index type and thru output method as single ended or differential output.
Also various resolution can be chosen freely for easier and precise positioning.
All OYOSTEPPER standard encoders are optical and incremental. When you choose encoder, please carefully look into options especially size, resolution, index and output method.

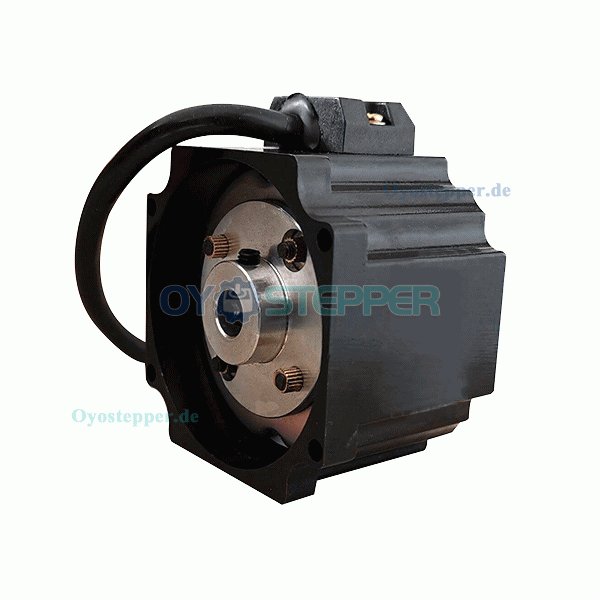

Brakes
Especially Vertical applications or holding motors from sudden power-off status, OYOSTEPPER standard power-off brakes for NEMA14, 17, 23, 24 and 34 sizes will be helpful to reduce concern of customers.

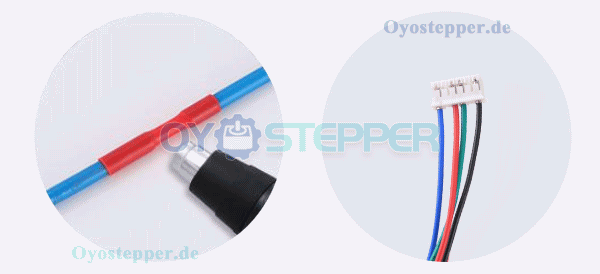

Wiring, Cabling and Connectors
Flying wire leads or connectors
Twisting wire leads
Heat shrink or expandable tubing
Cable housings

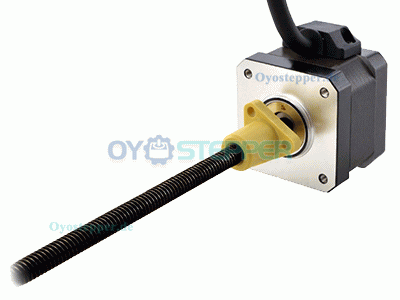

Teflon Coated Screw
If customer's applications require greaseless screw and nut combination, OYOSTEPPER offers teflon coated lead screw of stepper linear actuator.
Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.
Teflon coating can be applied in the whole range of lead screw options in OYOSTEPPER and all types of linear actuators such as External, Non-Captive, and Captive.
In addition, Anti-backlash nut also can be combined with teflon coated screw too.
Elektrische Spezifikation | |
---|---|
Bipolar/Unipolar | Bipolar |
Induktivität(mH) | 1.8 |
Phasenwiderstand(ohm) | 0.8 |
Nennstrom (A) | 2.5 |
Schrittwinkel(deg.) | 1.8 |
Linearmotortyp | Extern(Acme) |
Physikalische Spezifikation | |
Körper Länge(mm) | 48 |
Rahmengröße(mm) | Nema 17 (42 x 42) |
Leitungslänge(mm) | 500 |
Leitspindeldurchmesser(mm) | 6.35 |
Leitspindellänge(mm) | 150 |
Anzahl der Leiter | 4 |
Führungsweg/Umdrehung(mm) | 6.35 |
Leitspindelhub/Schrittlänge(mm) | 0.03175 |
IP-Bewertung | 40 |
