Nema 23 Bipolar Schrittmotor 0,9 Grad 70Ncm 2,8A 1,8V 4 Drähte CNC Schrittmotor
Nema 23 Bipolar Schrittmotor 0,9 Grad 70Ncm 2,8A 1,8V 4 Drähte CNC Schrittmotor

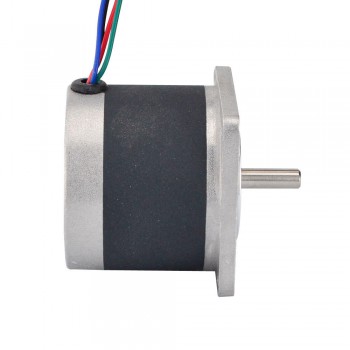

Dieser runde bipolare Nema 23-Schrittmotor mit einem Schrittwinkel von 0,9 Grad und einer Größe von 57 x 52 mm. Es hat 4 Drähte, jede Phase zieht 2,8 A, mit einem Haltemoment von 0,7 Nm (99,13 oz.in).
Elektrische Spezifikation
- Hersteller #: 23HR20-2804S
- Motorentyp: Bipolar
- Schrittwinkel: 1.8 Grad
- Haltemoment: 0.7Nm(99.13oz.in)
- Strom: 2.8A
- Stromspannung: 1.8V
- Phasenwiderstand: 0.65ohms
- Induktivität: 1.6mH ± 20%(1KHz)
Physikalische Spezifikation
- Rahmengröße: deg57mm
- Körper Länge: 52mm
- Schaftdurchmesser: Φ6.35mm
- Schaftlänge: 20.6mm
- Double D-Schnittlänge: 19mm
- Anzahl Leiter: 4
- Leitungslänge: 500mm
- Gewicht: 580g
Verbindung
A+
|
A-
|
B+
|
B-
|
Schwarz
|
Grün
|
Rot
|
Blau
|
Ressourcen
Vollständiges Datenblatt: 23HR20-2804S.pdf
Elektrische Spezifikation | |
---|---|
Bipolar/Unipolar | Bipolar |
Haltemoment (Ncm) | 70 |
Haltemoment (oz.in) | 99.13 |
Induktivität(mH) | 1.6 |
Phasenwiderstand(ohm) | 0.65 |
Nennstrom (A) | 2.8 |
Schrittwinkel(°) | 1.8 |
Physikalische Spezifikation | |
Körper Länge(mm) | 52 |
Rahmengröße(mm) | 57x57 |
Einzelne Welle/Doppelwelle | Einzelne Welle |
Abtriebswellentyp | D-Cut |
Schaftdurchmesser(mm) | 6.35 |
Schaftlänge(mm) | 20.6 |
Anzahl der Leiter | 4 |
Leitungslänge(mm) | 500 |
Gewicht(g) | 700 |
- Stecker: Molex, Harwin, Tyco/AMP, JST etc.
- Anschlussdrähte & Kabel: Sonderlängen, Schutzschlauch
- Welle: Rund, D-Cut, Quergebohrt, Keilnut, Gewinde oder Hohl
- Wicklung: Widerstand, Induktivität, Nennstrom, usw.
