Nema 23 Schrittmotor Unipolar 1.8 Grad 1.35nm 1A 8.6V CNC Schrittmotor mit 6 Anschlüssen
Nema 23 Schrittmotor Unipolar 1.8 Grad 1.35nm 1A 8.6V CNC Schrittmotor mit 6 Anschlüssen

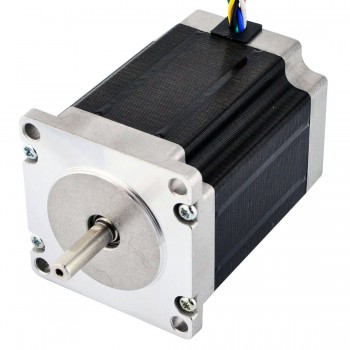

Dieser Unipolar Nema 23 Schrittmotor mit Schrittwinkel 1.8deg und Größe 57x57x76mm. Es hat 6 Drähte, jede Phase zieht 1.0A, mit Haltemoment 1.35Nm (191.2oz.in).
Elektrische Spezifikation
- Hersteller #: 23HS30-1006S
- Motorentyp: Unipolar Stepper
- Schrittwinkel: 1.8 Grad
- Haltemoment: 1.35Nm(191.2oz.in)
- Strom: 1.0A
- Stromspannung: 8.6V
- Phasenwiderstand: 8.6ohms
- Induktivität: 14mH ± 20%(1KHz)
Physikalische Spezifikation
- Rahmengröße: 57 x 57mm
- Körper Länge: 76mm
- Schaftdurchmesser: Φ6.35mm(1/4 inch)
- Schaftlänge: 20.6mm
- Double D-Schnittlänge: 18mm
- Anzahl Leiter: 6
- Leitungslänge: 500mm
- Gewicht: 1.0Kg
Verbindung
A+
|
O+
|
A-
|
B+
|
O-
|
B-
|
Schwarz
|
Gelb
|
GRN
|
Rot
|
Weiss
|
Blau
|
Ressourcen
Vollständiges Datenblatt: 23HS30-1006S.pdf
Elektrische Spezifikation | |
---|---|
Bipolar/Unipolar | Unipolar |
Haltemoment (Ncm) | 135 |
Haltemoment (oz.in) | 191.2 |
Induktivität(mH) | 18 |
Phasenwiderstand(ohm) | 8.6 |
Nennstrom (A) | 1 |
Schrittwinkel(°) | 1.8 |
Physikalische Spezifikation | |
Körper Länge(mm) | 76 |
Rahmengröße(mm) | 57x57 |
Einzelne Welle/Doppelwelle | Einzelne Welle |
Abtriebswellentyp | D-Cut |
Schaftdurchmesser(mm) | 6.35 |
Schaftlänge(mm) | 20.6 |
Anzahl der Leiter | 6 |
Leitungslänge(mm) | 500 |
Gewicht(g) | 1000 |
- Stecker: Molex, Harwin, Tyco/AMP, JST etc.
- Anschlussdrähte & Kabel: Sonderlängen, Schutzschlauch
- Welle: Rund, D-Cut, Quergebohrt, Keilnut, Gewinde oder Hohl
- Wicklung: Widerstand, Induktivität, Nennstrom, usw.
