NEMA 23 Externer Acme-Schrittmotor Linearaktuator 3,0 A 1Nm 1.8° Schrittmotor Linearaktuator Spindelsteigung 10.16mm
NEMA 23 Externer Acme-Schrittmotor Linearaktuator 3,0 A 1Nm 1.8° Schrittmotor Linearaktuator Spindelsteigung 10.16mm

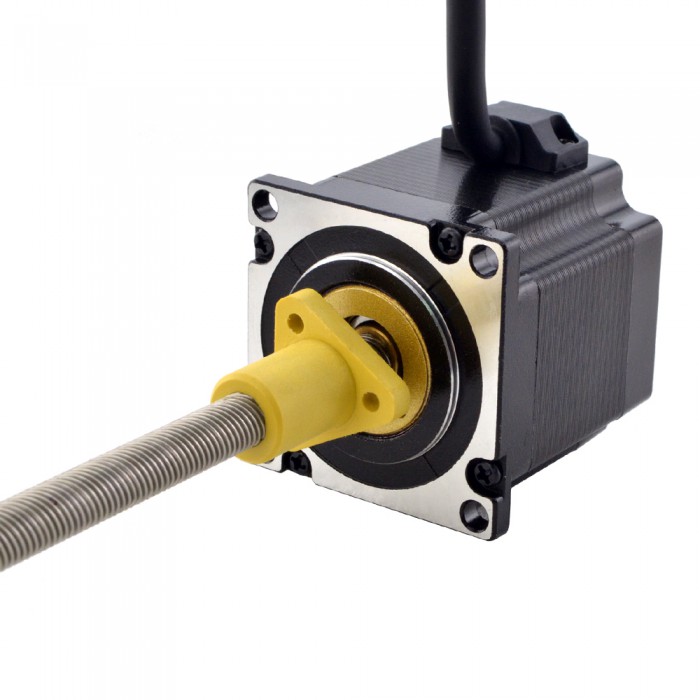

Bei diesem Modell handelt es sich um einen Nema 23 ACME Screw Linear Schrittmotor mit 56mm Körperlänge, 1,8 Grad Schrittwinkel und 3A Nennstrom. Es ist mit einem Durchmesser von Φ9,525 mm (0,375 Zoll), einer ACME-Schraubenlänge von 200 mm (7,8740 Zoll) und einer POM-Schraubenmutter integriert, der lineare Hub beträgt 10,16 mm (0,4 Zoll) pro Umdrehung.
Elektrische Spezifikation
Hersteller #: 23E22S3004NG5-200RS
Motorentyp: Extern(ACME)
Schrittwinkel: 1.8°
Haltemoment: 1Nm(141.64oz.in)
Strom: 3A
Phasenwiderstand: 1.1ohms
Induktivität: 4.5mH±20%(1KHz)
Physikalische Spezifikation
Rahmengröße: 57 x 57mm
Körper Länge: 56mm
Leitspindellänge: 200mm(7.8740")
Leitspindeldurchmesser: Φ9.525mm(0.375")
Führen/Schritt: 0.0508mm(0.002")
Führungsweg/Umdrehung: 10.16mm(0.4")
Anzahl Leiter: 4
Anzahl der Thread-Starts: 8
Leitungslänge: 500mm
Verbindung
A+ | A- | B+ | B- |
Rot | Rot/Weiss | Grün | Grün/Weiss |
Lead Screw End Machining
Anti-Backlash Nut
OYOSTEPPER provides anti-backlash nut for external lead screw linear actuator (except Size 34) and non-captive lead screw linear actuator (except size 24 and 34).
There should be a nominal backlash between lead screw and OYOSTEPPER standard plastic nut after millions of cycles. OYOSTEPPER guarantees few millions of cycles but physical backlash can be increased. To reduce or eliminate backlash, OYOSTEPPER provides spring pressure structure of anti-backlash nut.
Encoders
According to application requirements, customer can easily choose encoders via index output or non-index type and thru output method as single ended or differential output.
Also various resolution can be chosen freely for easier and precise positioning.
All OYOSTEPPER standard encoders are optical and incremental. When you choose encoder, please carefully look into options especially size, resolution, index and output method.
Brakes
Especially Vertical applications or holding motors from sudden power-off status, OYOSTEPPER standard power-off brakes for NEMA14, 17, 23, 24 and 34 sizes will be helpful to reduce concern of customers.
Wiring, Cabling and Connectors
Flying wire leads or connectors
Twisting wire leads
Heat shrink or expandable tubing
Cable housings
Teflon Coated Screw
If customer's applications require greaseless screw and nut combination, OYOSTEPPER offers teflon coated lead screw of stepper linear actuator.
Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.
Teflon coating can be applied in the whole range of lead screw options in OYOSTEPPER and all types of linear actuators such as External, Non-Captive, and Captive.
In addition, Anti-backlash nut also can be combined with teflon coated screw too.
Elektrische Spezifikation | |
---|---|
Bipolar/Unipolar | Bipolar |
Induktivität(mH) | 4.5 |
Phasenwiderstand(ohm) | 1.1 |
Nennstrom (A) | 3.0 |
Schrittwinkel(deg.) | 1.8 |
Linearmotortyp | Extern(Acme) |
Physikalische Spezifikation | |
Körper Länge(mm) | 56 |
Rahmengröße(mm) | Nema 23 (57 x 57) |
Leitungslänge(mm) | 500 |
Leitspindeldurchmesser(mm) | 9.525 |
Leitspindellänge(mm) | 200 |
Anzahl der Leiter | 4 |
Führungsweg/Umdrehung(mm) | 10.16 |
Leitspindelhub/Schrittlänge(mm) | 0.0508 |
IP-Bewertung | 40 |
