550W/750W Gleichstrommotor für Mini Drehmaschinen 6000U/min passend für CJ0618 WM210V CD210V

550W/750W Gleichstrommotor für Mini Drehmaschinen 6000U/min passend für CJ0618 WM210V CD210V

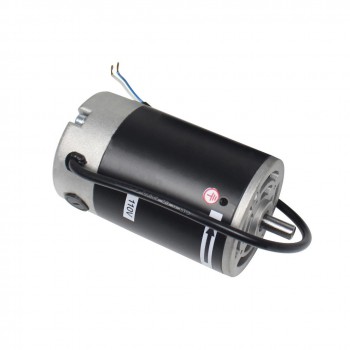

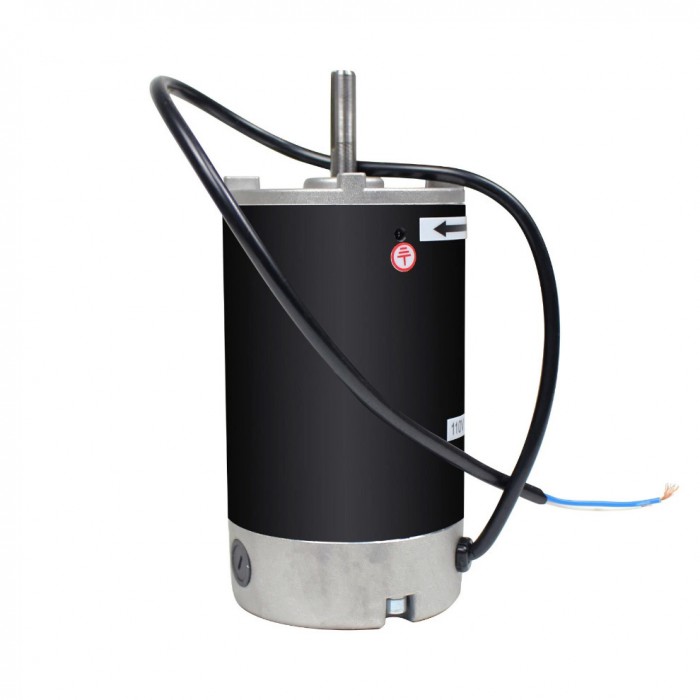

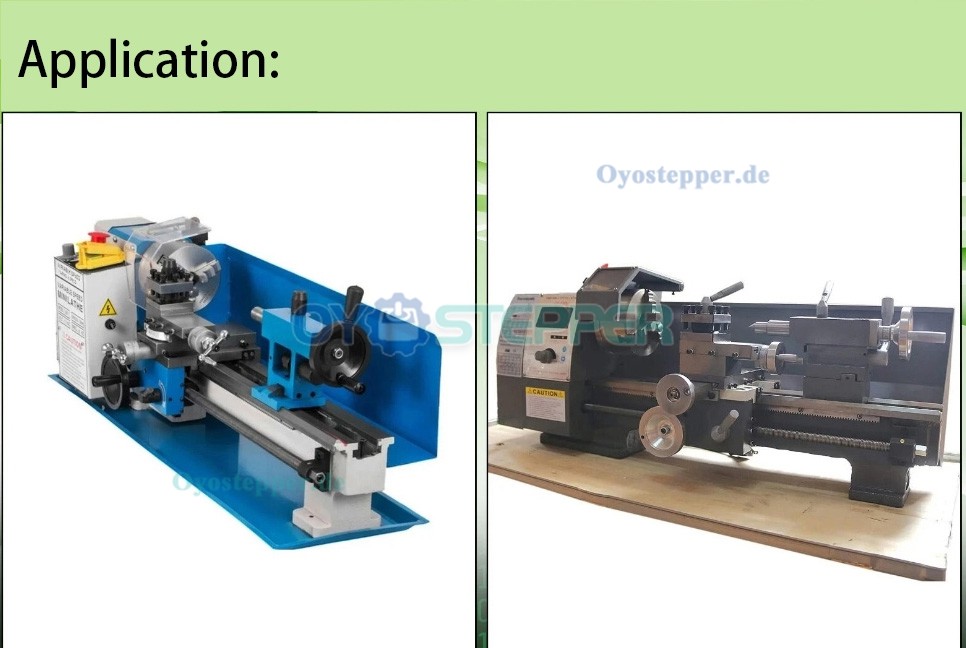

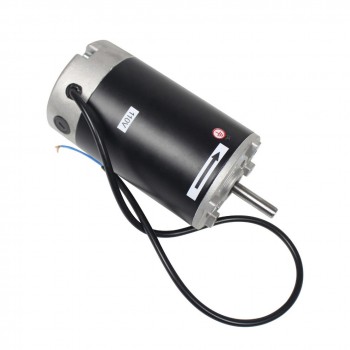

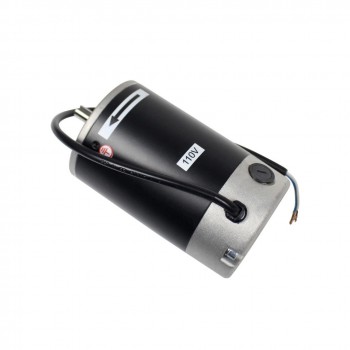

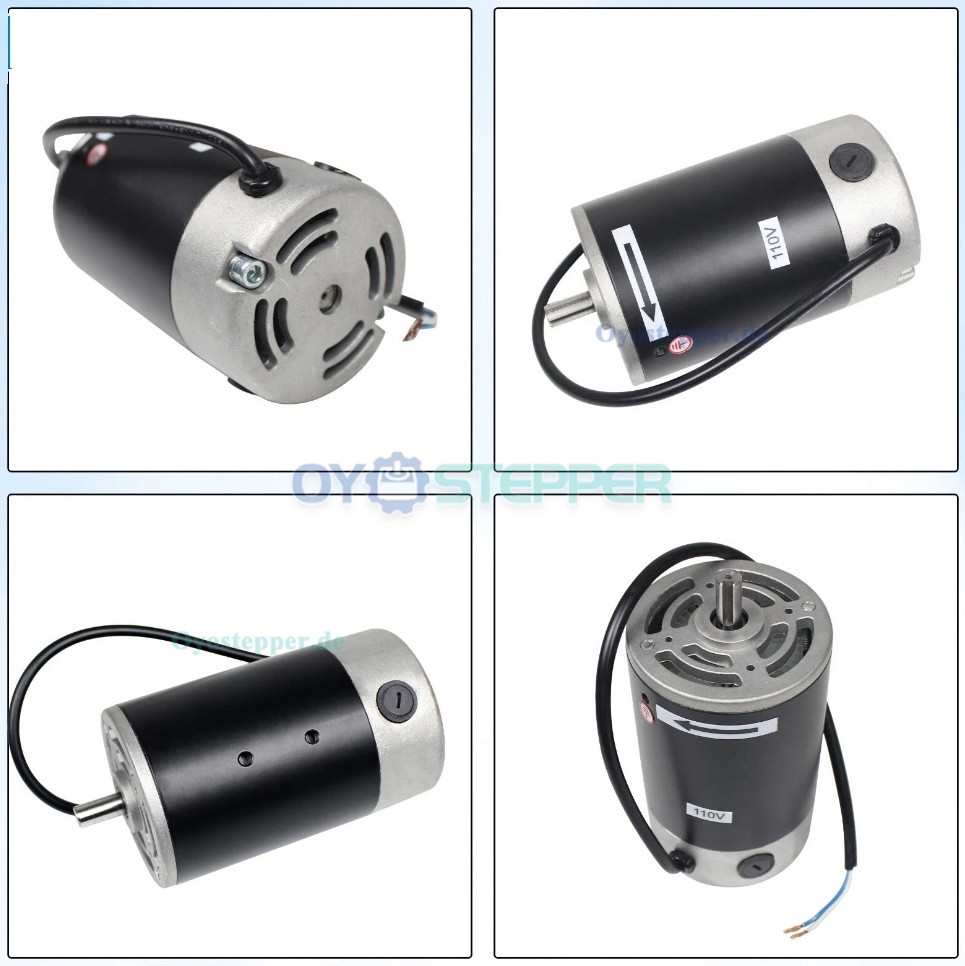

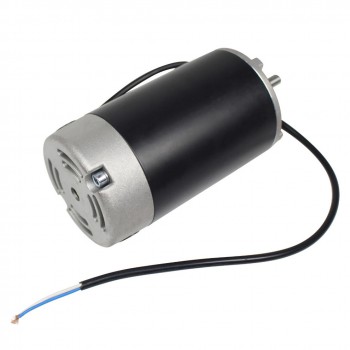

This 550W mini lathe motor is designed for use with small benchtop lathes. It is compatible with models such as 210, MX210, CD-210V, and lathes with working dimensions of 8x16, 220x400, 220x600, and 220x750.

Please be noted that:

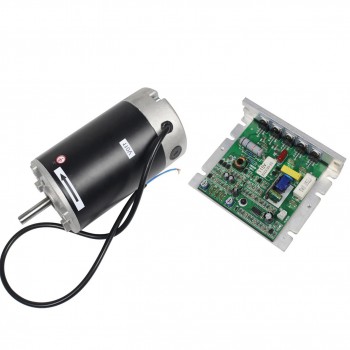

The motor operates on 110V DC and must not be connected directly to a 110V AC mains supply. It requires a lathe speed controller to provide the correct DC power.

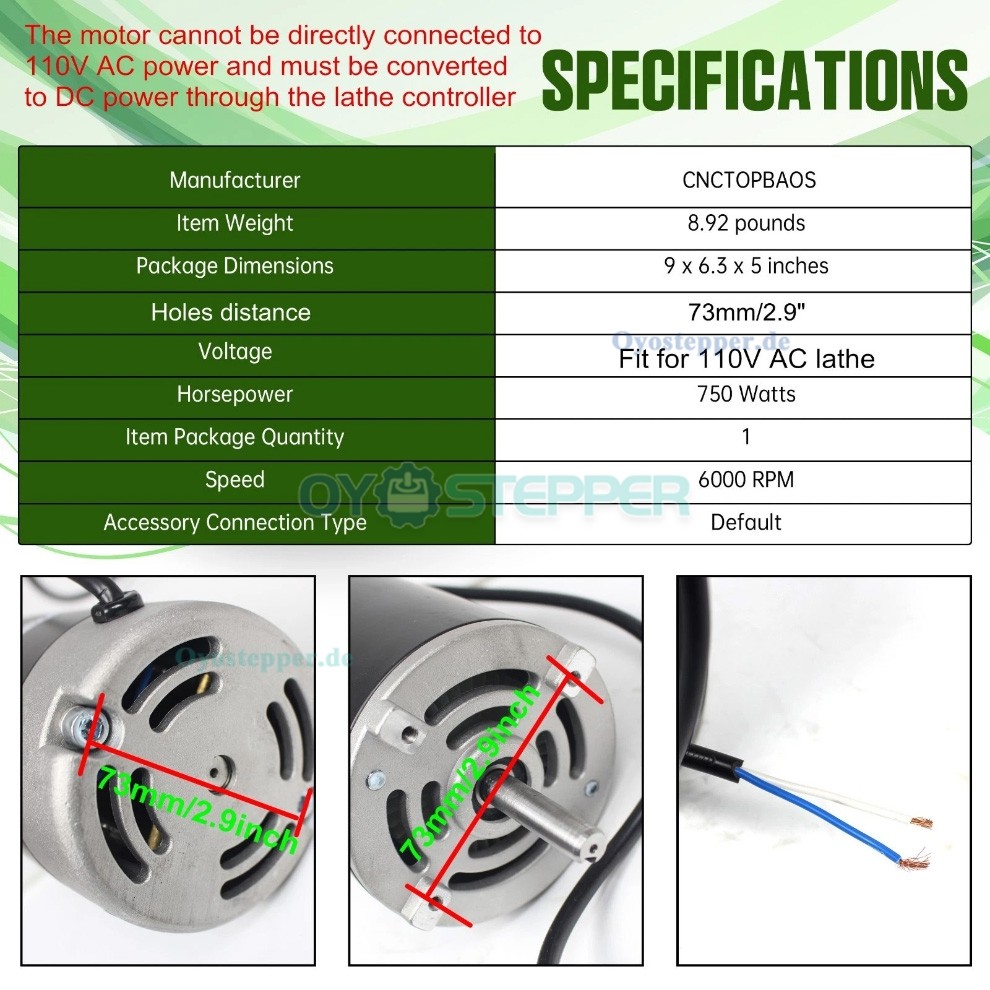

Specifications:

Type: Mini Lathe Motor

Material: Iron;

Rated Power: 550W/750W

Operating Voltage: 110V DC;

Note: The motor cannot be connected directly to 110V AC mains. It must be powered via the dedicated controller board which converts AC to DC.

Maximum Speed: 6000 RPM;

Motor Diameter: ~83 mm / 3.3 inches;

Total Length: ~158 mm / 6.2 inches;

Shaft Diameter: M10 (10mm metric thread);

Shaft Length: ~20 mm / 0.8 inches;

Mounting Hole Distance (Center-to-Center): ~50 mm / 1.96 inches;


Package List:
1 x Mini Lathe Motor
